Eco-Worthy 5000W Off-Grid 48V DC to 120V AC Split Phase Hybrid Inverter

Eco-Worthy 5000W Off-Grid 48V DC to 120V AC Split Phase Hybrid Inverter

This 5000W Solar Off-grid Inverter Charger is engineered for seamless off-grid energy independence, providing robust 48V DC to 120V AC split-phase power conversion. Ideal for home backup, RVs, remote cabins, or solar-powered buildings, this inverter offers unmatched flexibility and performance. With support for both single and split-phase configurations, battery-free operation, and intelligent charging modes, it’s built to keep your essential appliances running around the clock—powered directly from the sun.

Designed with high-capacity parallel support, smart load management, and advanced protection systems, this inverter is your all-in-one energy solution when the grid isn’t available or when you want to control how you consume energy. Whether you're prioritizing solar, battery, or grid input, the system adapts dynamically to deliver continuous, efficient power.

Why Choose Th Eco-Worthy 5000W Hybrid Solar Inverter

Parallel Support up to 30kW
This inverter supports parallel configuration with up to 6 units, providing a total output capacity of 30kW. Whether you're scaling your system for more appliances or expanding your property’s power infrastructure, it allows both single-phase and split-phase (120V/240V) or even 120V/208V when more than two units are connected in parallel.

Battery-Free Operation
Unlike many hybrid inverters, this unit can run completely without battery input. The inverter is designed to power connected loads directly from solar PV, making it ideal for daytime energy use while minimizing battery reliance and maintenance costs.

Advanced Charging and Output Modes
Three selectable output priority modes—mains, battery, and PV—allow you to dictate how power is drawn and stored. Choose from four charging modes: Only Solar, Mains Priority, Solar Priority, and a hybrid Solar + Mains setup. Customizable charging time periods help take advantage of off-peak rates or maximize solar utilization in varying grid conditions.

Robust Power Handling
With a maximum PV input power of 5500W and a wide voltage range of 120–500V DC, the unit supports modern high-efficiency solar panel arrays. It features an 80A MPPT charge controller and outputs a steady 5000W of rated power with up to 10,000W of surge capacity—ideal for motor loads or sudden power spikes.

Comprehensive Safety and Monitoring

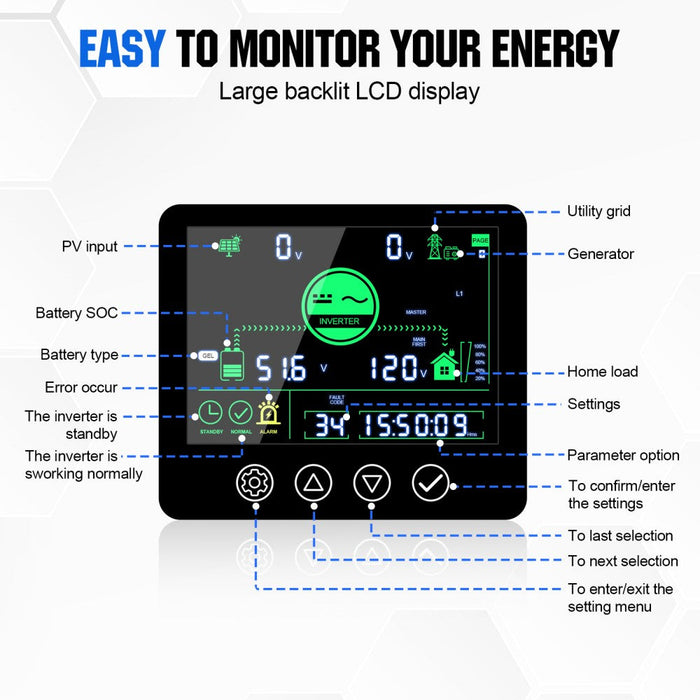

An intuitive LCD display provides real-time data on system performance, power flow, and battery status. Built-in protections include PV over-voltage, reverse current at night, input power limiting, and internal thermal management using multiple cooling fans to ensure safe and stable operation in demanding environments.

What’s Included with the Eco-Worthy 5000W Off-Grid Split Phase Hybrid Inverter

The package includes the 5000W Off-grid Inverter Charger unit, user manual, communication and parallel cables (if parallel use is required), and all required terminal hardware. The system comes ready for installation into new or existing off-grid or hybrid energy setups.

The 5000W Solar Off-grid Inverter Charger is a rugged, scalable, and intelligent solution for anyone seeking energy independence without sacrificing reliability or control. Built to adapt with your needs, it's the backbone of any serious off-grid or hybrid solar power system.

Specifications

Eco-Worthy 5000W Off-Grid 48V DC to 120V AC Split Phase Hybrid Inverter Specifications
