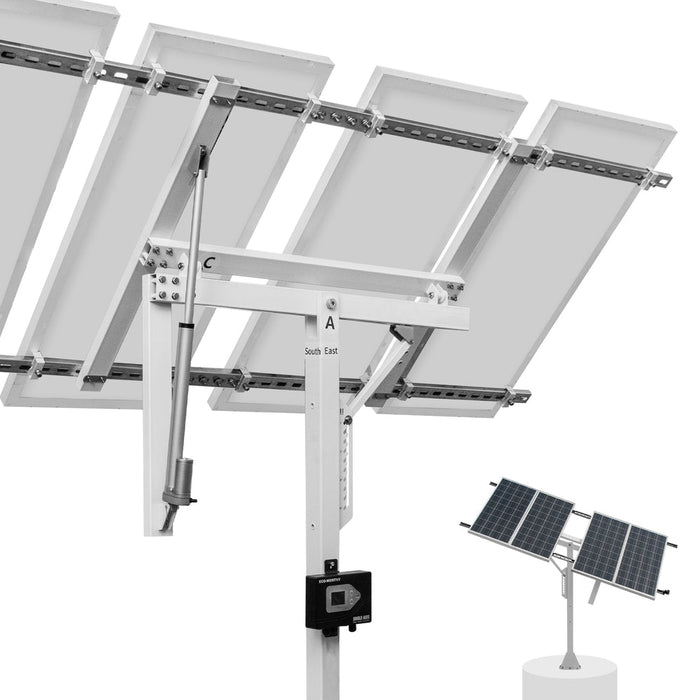

The ECO-WORTHY Single Axis Solar Tracking System
The ECO-WORTHY Single Axis Solar Tracking System is designed to dramatically increase solar energy yield by ensuring that your panels are always positioned to face the sun throughout the day. Unlike traditional fixed-mount systems, this dynamic tracker intelligently adjusts panel orientation using a 12V linear actuator controlled by a smart solar tracker controller. The result is a highly efficient, weather-aware system that enhances energy production while offering automation, durability, and ease of use.
Ideal for both residential and commercial applications, this system positions solar panels on a pole-mounted platform that follows the sun from morning to evening, capturing sunlight at optimal angles throughout the day. With built-in intelligence to respond to environmental conditions like storms or low sunlight, it offers consistent performance and protection for your investment.
Why Choose The Eco-Worthy Single Axis Solar Tracker
Increased Power Generation with Up to 30% More Output
By automatically adjusting the angle of the panels throughout the day, this single-axis tracking system can boost energy yield by at least 30% compared to fixed-mount installations. Enhanced morning and afternoon performance leads to faster ROI and more consistent solar power delivery.
Smart Sun-Tracking with 270° Adjustment Range

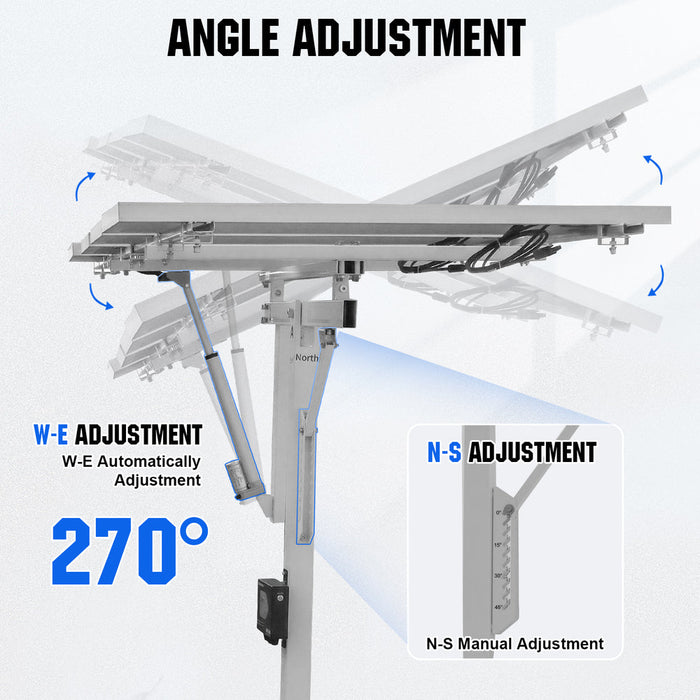

The system enables solar panels to rotate up to 270 degrees, tracking sunlight from sunrise to sunset. Light sensors and the controller work together to ensure maximum surface area exposure, capturing the full arc of the sun’s movement for superior energy absorption.
Adaptive Weather Response for Panel Protection
Equipped with an intelligent weather detector, the system automatically flattens the solar panels during nighttime, cloudy days, or storms to protect your equipment and reduce unnecessary movement. This smart feature ensures operational efficiency while extending the life of your solar array.
Compatible with Multiple Solar Panel Sizes and Configurations

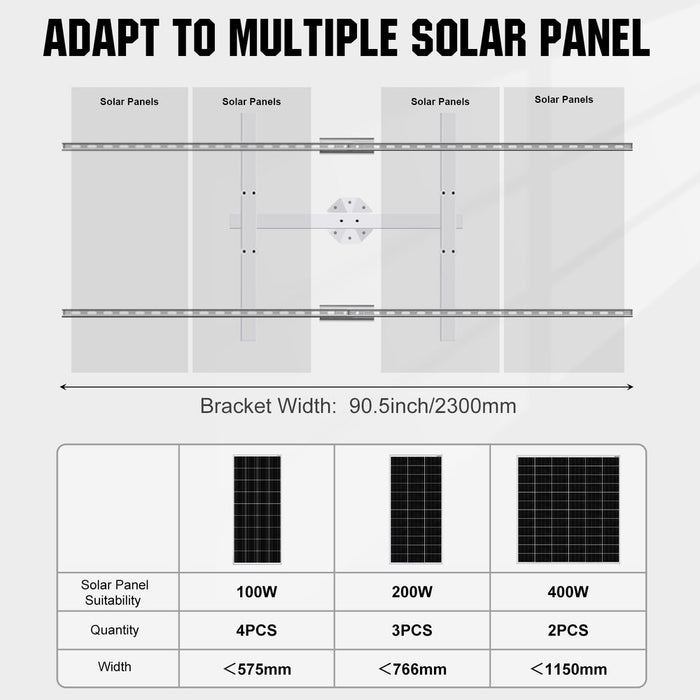

The tracker’s mounting arms are adjustable to support various panel sizes. Install up to 4 panels when each is under 22 inches wide, 3 panels when under 29.5 inches, and 2 panels for widths under 44.8 inches. This flexibility makes it ideal for custom solar builds and scalable installations.
Strong Structural Integrity and Environmental Durability
Designed to perform under real-world conditions, the system supports wind resistance levels greater than L8 and pressure resistance over 5400Pa, making it suitable for challenging environments including high-wind and high-snow-load areas.
Simple Installation in Four Straightforward Steps

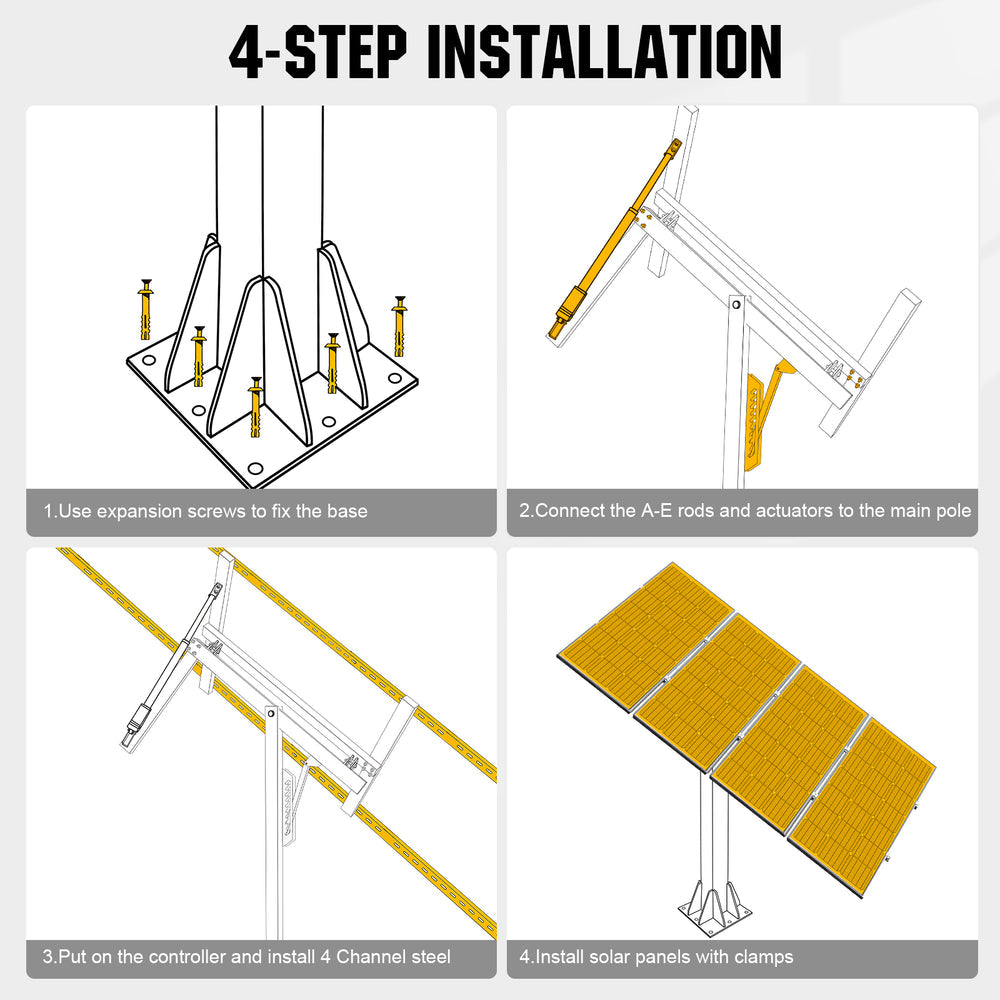

Setup is fast and intuitive. Mount the base using expansion screws, connect the rods and actuators to the main pole, install the controller, and mount your solar panels. With clear instructions and minimal tools required, most users can have the system operational in a single afternoon.
Easy-to-Use Controls for Intelligent Operation

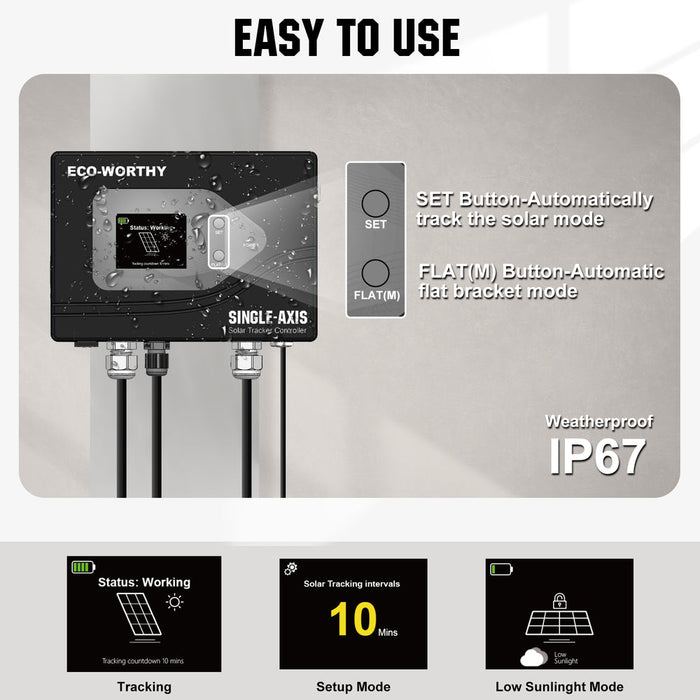

Operate the system effortlessly using the controller interface. Press the SET button to enable automatic solar tracking mode. Use the FLAT(M) button to place the panels in automatic flat bracket mode for nighttime or storm conditions. No coding or technical expertise required—just push-button simplicity.
What’s Included with the Single Axis Solar Tracker
Your package includes the ECO-WORTHY Single Axis Solar Tracking Controller, a compatible 12V linear actuator, pole-mounting hardware, smart weather sensor, control system, and an easy-to-follow installation manual. The full mounting kit is adaptable to support a variety of panel sizes and configurations, allowing you to tailor the setup to your specific solar array. You can mount up to 4 solar panels depending on panel width and system orientation needs.
The ECO-WORTHY Single Axis Solar Tracker offers powerful solar optimization in a compact, intelligent design—maximizing your energy output while minimizing manual adjustments and maintenance. It’s the next step in making your solar system smarter, more efficient, and built for long-term performance.
Specifications
