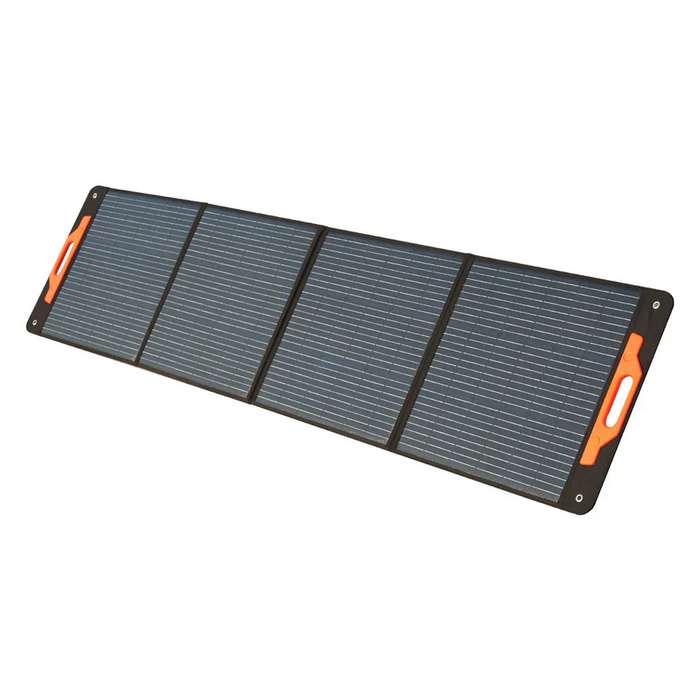

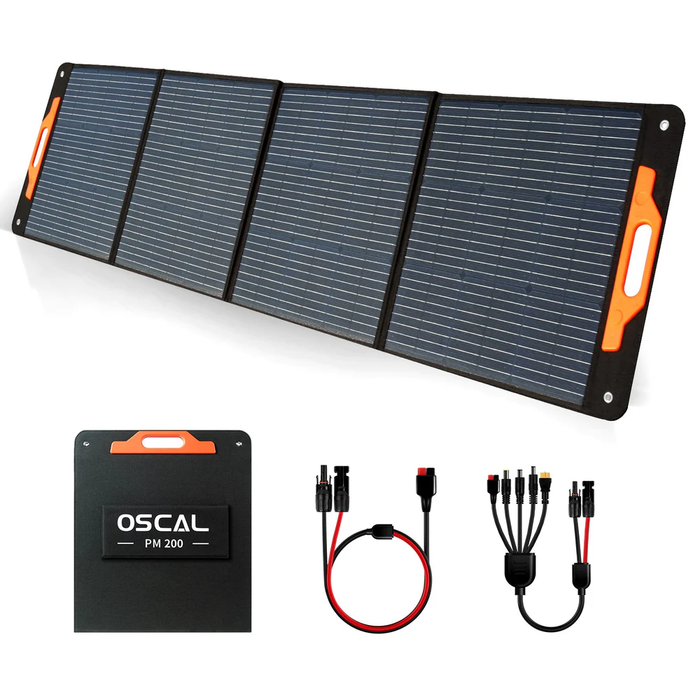

OSCAL PM200SE 200W Solar Panel – Portable Solar Power for Off-Grid Living

Power your next adventure with the OSCAL PM200SE 200W Solar Panel. Designed to convert sunlight into electricity for a compatible solar power system, this panel offers a practical option for RV owners, campers, and homeowners looking to generate power away from conventional outlets. Whether you're planning an off-grid getaway, charging a portable power station, or exploring solar power for a cabin or shed, the PM200SE gives you a defined 200W power rating to help plan your setup.

Make better use of available sunlight with 200W of rated power and monocrystalline silicon solar cells featuring a stated conversion efficiency of at least 21.7%. The OSCAL PM200SE provides an option for customers who want to incorporate solar energy into their outdoor power setup without relying exclusively on the power grid. Actual energy production depends on solar irradiance, panel positioning, shading, temperature, and the requirements of your connected equipment.

Choosing the right solar panel is about more than wattage. The PM200SE's electrical ratings, folded dimensions, weight, and operating temperature range help you assess whether it fits your intended application. Before purchasing, check compatibility with your portable power station or charge controller to ensure the panel works with your existing solar energy system.

Ready to Power Your Next Adventure? Shop the OSCAL PM200SE Today

Take control of your portable solar charging with the OSCAL PM200SE 200W Solar Panel. With 200W of rated power, monocrystalline silicon cells, and at least 21.7% stated conversion efficiency, it's a practical option to consider for compatible solar power stations, RV trips, camping, and off-grid projects. Before ordering, confirm your equipment's voltage and current requirements to ensure the panel is the right fit for your setup.

Ideal for Camping, RV Travel, Cabins, and Backup Power Planning

Keep your portable power system supplied with solar energy while outdoors. For camping and RV trips, the OSCAL PM200SE can serve as a solar charging source for compatible power equipment. Collecting energy during daylight hours can help replenish a connected power station when conventional outlets are unavailable. Actual charging performance depends on sunlight conditions, the receiving device's solar input limits, and the amount of energy your equipment consumes.

Explore off-grid electricity for cabins and sheds. If you're planning power for a remote property or workspace, the PM200SE can form part of a larger solar energy system. Before choosing your panel, consider the electricity requirements of your lights, electronics, tools, and other equipment, along with the solar irradiance available at your location. A well-matched system must account for generation, storage, and power conversion to meet your needs.

Add solar charging to your home backup plan. If you're preparing for power outages, the PM200SE may contribute to a compatible solar backup setup. However, the panel alone does not store electricity or guarantee a continuous power supply. A suitable power station or other compatible equipment may be needed to store the generated energy and supply electricity to your devices. Confirm that the panel's voltage and current ratings match your intended equipment before purchasing.

Specifications

 OSCAL PM200SE Solar Panel Specifications

FAQ'S

Frequently Asked Questions About the OSCAL PM200SE Solar Panel

What is the maximum power output of the OSCAL PM200SE Solar Panel?

The supplied specifications list a maximum power rating of 200W ±5%. This rating describes the panel's power under applicable test conditions. It does not mean the panel will continuously generate 200 watts in every environment. Actual output depends on solar irradiance, temperature, shading, orientation, and other operating conditions.

How much electricity can a 200W solar panel generate per day?

Daily solar energy production depends on the amount of effective sunlight the panel receives. The rated 200W output alone is not enough to calculate a reliable daily energy estimate. Consider the local solar irradiance, seasonal daylight conditions, panel positioning, and losses within the connected charging system when estimating how much energy may be available.

Is the OSCAL PM200SE suitable for off-grid power?

The panel may be suitable as part of a compatible off-grid power system. You will need to confirm that your connected power station or charging equipment supports the panel's voltage and current characteristics. The panel itself collects and generates electrical power from sunlight; it does not independently store energy or supply household AC electricity.

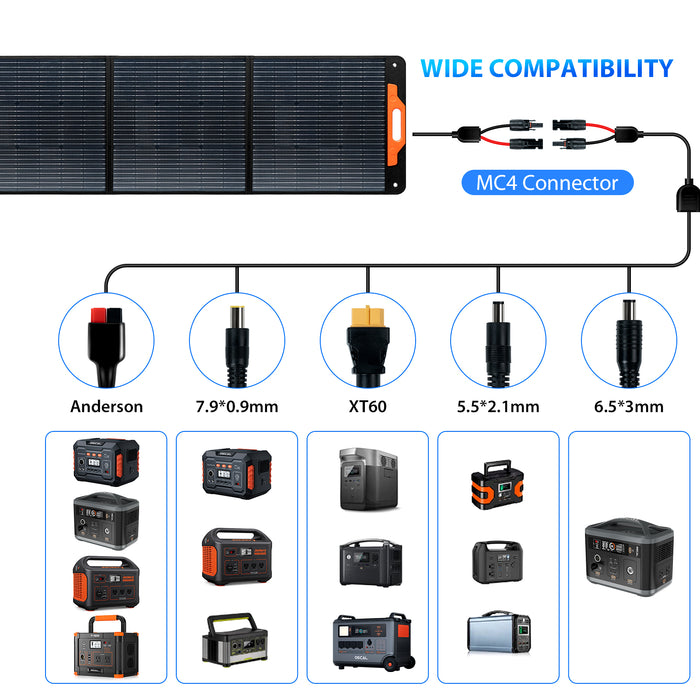

Can I connect the OSCAL PM200SE to a portable power station?

Compatibility depends on the power station's permitted solar input voltage, current, connector type, and maximum solar charging capacity. The PM200 specifications list 21V ±5% maximum power voltage and 25.2V ±5% open-circuit voltage. Verify that the power station supports these values before making a connection.

Can this solar panel help during a power outage?

The PM200 may contribute to a backup power arrangement when connected to compatible equipment. A power station or other suitable system may be needed to store energy and provide the type of electricity required by your devices. The amount of backup power available depends on sunlight, storage capacity, charging performance, and the energy consumption of the equipment you want to run.

What does the stated 21.7% conversion efficiency mean?

The stated conversion efficiency of at least 21.7% indicates how effectively the solar cells convert incident sunlight into electricity under the relevant test conditions. It is one useful measure for comparing solar panels, but it does not guarantee a particular real-world output. Sunlight intensity, temperature, shading, and installation conditions all influence solar panel performance.

What is the difference between maximum power voltage and open-circuit voltage?

The panel's maximum power voltage is 21V ±5%, while its open-circuit voltage is 25.2V ±5%. Maximum power voltage is associated with the panel's rated maximum-power operating point. Open-circuit voltage is measured when the panel is not supplying current to a load. Both values matter when checking compatibility with a solar power station or charge controller.

What do maximum power current and short-circuit current tell me?

The PM200 specifications list maximum power current at 9.52A ±5% and short-circuit current at 11.42A ±5%. Maximum power current describes current at the rated maximum-power operating point, while short-circuit current is measured when the output terminals are shorted under the relevant test conditions. These figures help determine whether connected equipment can accommodate the panel's electrical characteristics.

Can I connect multiple PM200SE solar panels together?

Connecting multiple panels may increase the solar power available, but the correct configuration depends on the connected equipment's voltage, current, and maximum solar input limits. Panels connected in series increase voltage, while parallel connections increase current. Check the equipment manufacturer's specifications before expanding your solar energy system, and do not exceed the permitted electrical input ratings.

Is the OSCAL PM200SE suitable for RV and camping use?

It may suit an RV or camping setup when the panel's output, dimensions, weight, and connection requirements match your equipment. Its listed weight is 7kg ±1kg, which is relevant when planning transportation and positioning. Confirm that your portable power station or charging system accepts the panel's electrical output before using it on a trip.

Can I use this panel to provide power to a cabin or shed?

The PM200 can be considered as one component of a solar power system for a cabin or shed. Suitability depends on the electrical loads you intend to run, the hours of sunlight available, and whether the system includes sufficient energy storage and conversion equipment. Calculate your expected energy consumption before deciding whether a single 200W panel will meet your needs.

How does solar irradiance affect the PM200's power output?

Solar irradiance measures the solar power reaching a given surface and directly affects the electricity a panel can generate. Strong sunlight generally supports higher output than shaded or overcast conditions. Time of day, season, panel orientation, and local weather all influence the available solar radiation and the amount of energy you can collect.

Will the PM200 generate electricity on cloudy days?

A solar panel may still generate electricity under cloudy conditions, but output can be lower because less sunlight reaches the cells. The amount of available energy depends on cloud cover and local solar irradiance. If you rely on solar power to recharge important equipment, account for changing weather and avoid assuming that rated power will always be available.

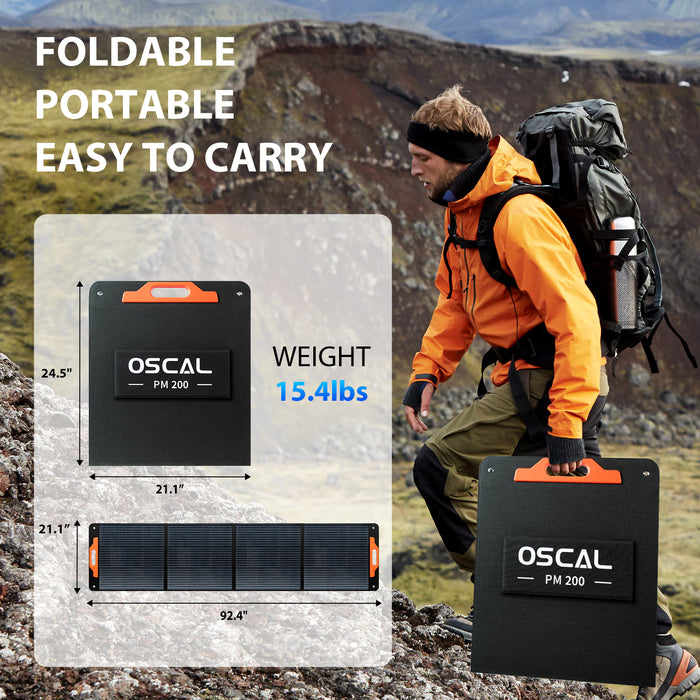

What are the folded and unfolded dimensions of the OSCAL PM200SE?

The supplied product details list unfolded dimensions of 2349 × 536 × 25mm and folded dimensions of 536 × 618 × 54mm. These measurements help you plan storage and setup space for travel or off-grid use. Confirm that the folded dimensions fit your available storage area and that you have sufficient space to position the panel when in use.

What operating temperatures are listed for the PM200SE?

The supplied specifications state an operating temperature range of -10°C to +65°C. This range is useful when evaluating whether the panel is appropriate for the environmental conditions in which you plan to use it. It does not mean that power output will remain constant throughout the range, as temperature and sunlight conditions can affect performance.

Why does the PM200SE use monocrystalline silicon cells?

The supplied product details identify monocrystalline silicon as the panel's cell type. This specification helps shoppers compare the type of solar technology used in different panels. To evaluate the overall suitability of a solar panel, also consider its rated wattage, conversion efficiency, voltage and current ratings, dimensions, and compatibility with your equipment.

Can I connect the PM200SE directly to household appliances?

Do not assume the panel can directly power household appliances. The supplied specifications describe the panel's electrical output but do not identify a built-in inverter or energy storage system. Many household appliances require a compatible power station or inverter to supply the appropriate AC power. Confirm the requirements of your equipment before connecting it.

Can the OSCAL PM200SE be installed on a rooftop?

Whether this panel is appropriate for a rooftop solar installation depends on the mounting method, environmental exposure, electrical design, and requirements of the complete system. The supplied product details do not establish a specific rooftop mounting method or installation approval. Confirm the manufacturer's installation instructions and consult a qualified installer if you are planning a permanent solar energy installation.

How can I maintain solar panel performance over time?

Keep the panel's light-receiving surface clear of dirt, dust, leaves, and other obstructions, and follow the manufacturer's instructions for cleaning and handling. Inspect the panel and its connections for visible damage before use. Good maintenance can help avoid preventable obstructions, but long-term performance also depends on operating conditions, product construction, and how the panel is handled.

What should I check before buying the OSCAL PM200SE Solar Panel?

Confirm that the 200W rated power, 21V ±5% maximum power voltage, and 25.2V ±5% open-circuit voltage are compatible with your intended charging equipment. Review the panel's current ratings, folded and unfolded dimensions, weight, and operating temperature range. Also confirm which accessories are included and whether your system requires additional components. These checks help you select a solar panel that fits your power needs instead of relying on wattage alone.
