Rich Solar 8000W PV Input 48V 120VAC Output + 6560(16x410) Watt Solar PV Complete Off-Grid Solar Kit
Everything you need to go completely Off-Grid!
16 x MEGA 410 Watt Monocrystalline Solar Panel
1 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter
3 x 4.8kWh ALPHA 5 Server Lithium Iron Phosphate Battery
1 x Free Battery Rack
1 x Solar PV DC Quick Disconnect Switch

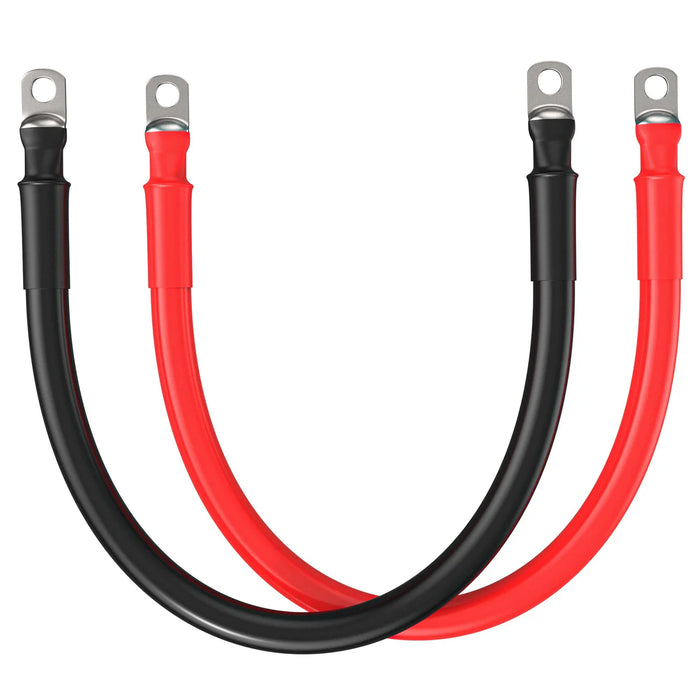

2 x 4 Foot 2/0 Gauge AWG Wire Set 3/8"

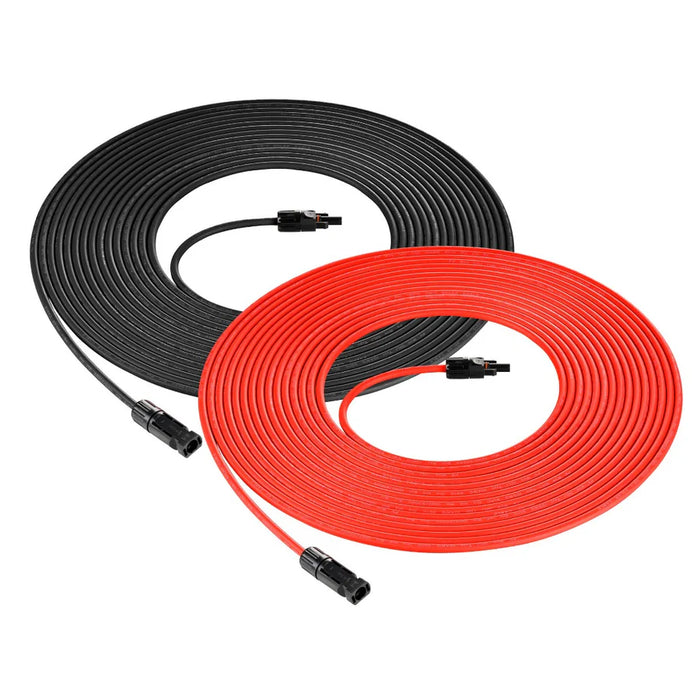

4 x 10 Gauge 50 Feet Solar Extension Cable

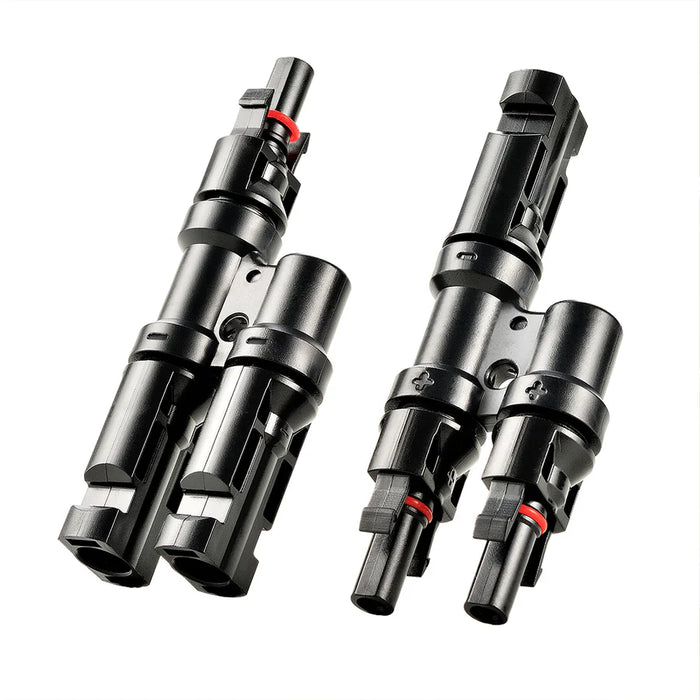

2 x Y Branch Parallel Connectors 2 to 1
2 x Busbar 600 AMP
ALPHA 5 PRO · 51.2V 100Ah LiFePO4 Battery
1. CLOSED LOOP COMMUNICATIONS
Compatible with multiple brands of inverters.
2. REMOTE MONITORING APP
See real-time statistics of your battery.
3. PARALLEL UP TO 15 BATTERIES
Get the most power possible! Up to 76.8 kWh
while maintaining BMS communications.
4. BUILT-IN CIRCUIT BREAKER
Offer fail-safe operation in high risk environments
and protect against rare hardware failure on high
voltage solar charge controllers.
5. WELDED PRISMATIC CELL CONNECTIONS
Never worry about losing power due to a loose
internal connection.
6. RACK-MOUNT DESIGN
3U server rack mounting makes it convenient to
store.
7. LOW TEMPERATURE PROTECTION
Charging off below 32℉ feature ensures stable
charging performance in cold weather conditions.
8. CERTIFICATION: UL1973, UL9540A, FCC
Specifications

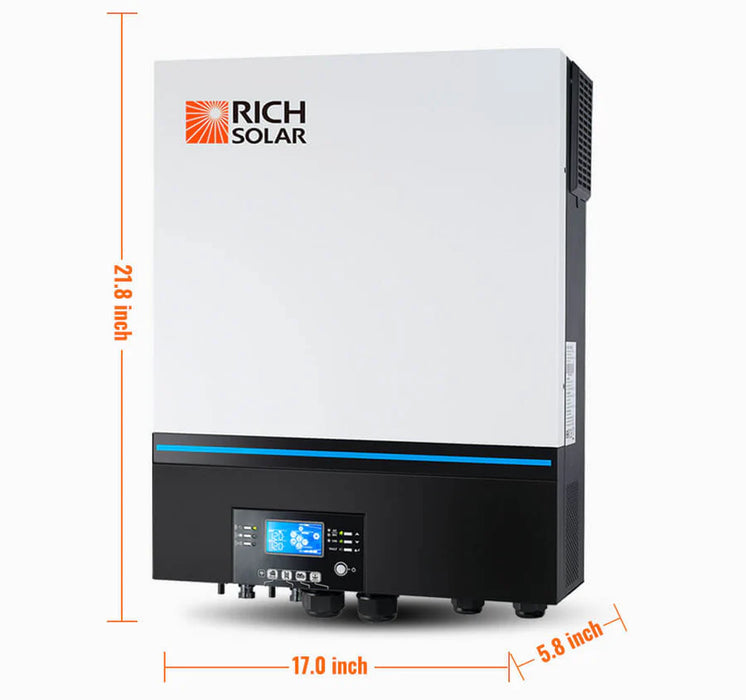

6500W 48V Off-Grid Hybrid Solar Inverter (RS-H6548)
- Rated Inverter Power: 6500VA/6500W
- Parallel Capability: Yes, 6 Units
- Input Voltage: 120 VAC
- Frequency Range: 50 Hz/60 Hz (Auto Sensing)
- Efficiency (Peak): 90% ~ 93%
- Waveform: Pure Sine Wave
- Battery Voltage: 48 VDC
- Solar Charger Type: MPPT
- Maximum PV Array Power: 8000W (4000W x 2)
- MPPT Operating Voltage Range: 90 ~ 230 VDC
- Maximum PV Array Open Circuit Voltage: 250 VDC
- Maximum Charge Current: 120A
- Dimension (DxWxH): 5.8 x 17.0 x 21.8 in
- Net Weight: 40.6 lb
- Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact
- Compliance Safety: UL
- Warranty: 5 Years
ALPHA 5 | 48V 100Ah Server Rack Lithium Iron Phosphate Battery (RS-B48100SR)
- Nominal Voltage: 48V
- Nominal Capacity: 100Ah
- Expected Cycle Life: >7000 Cycles
- Energy: 4.8kWh
- Continuous Charge Current: 100A
- Continuous Discharge Current: 100A
- Waterproof: IP65
- Dimensions (DxWxH): 19 x 17.7 x 5.2 in
- Net Weight: 92.6 lb
- Warranty: 10 Years Manufacturer Defect
MEGA 410 Watt Monocrystalline Solar Panel (RS-M410)
- Maximum Power(Pmax): 410W
- Maximum Power Voltage(Vmp): 31.3V
- Maximum Power Current(Imp): 13.1A
- Maximum System Voltage(Vmax): 1500VDC
- Module Efficiency: 20.97%
- Net Weight: 45.2 lb
- Dimensions: 67.9 x 44.6 x 1.2 in
- Warranty: 25 Years

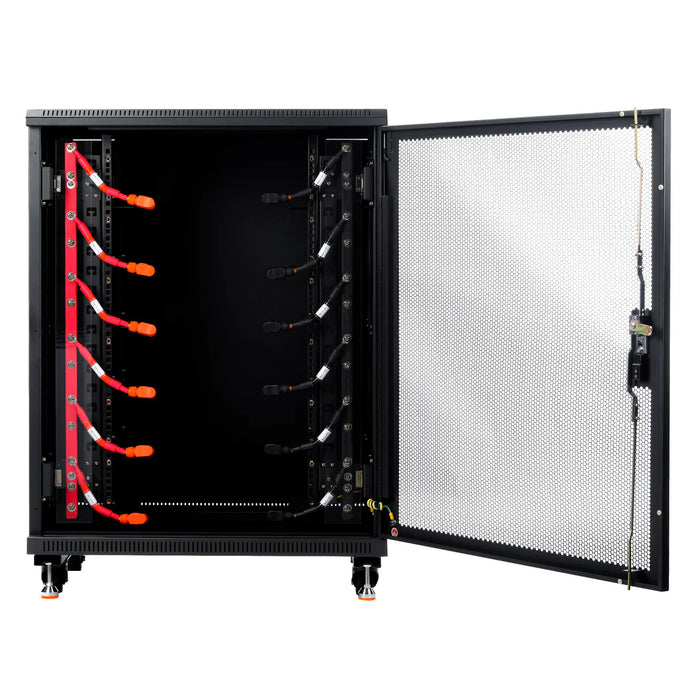

BATTERY SERVER RACK
- Battery Voltage: 48 VDC
- Floating Charge Voltage: 54 VDC
- Overcharge Protection: 66 VDC
- Dimensions (LxWxH): 32 x 24 x 44 in
- Net Weight: 159 lb

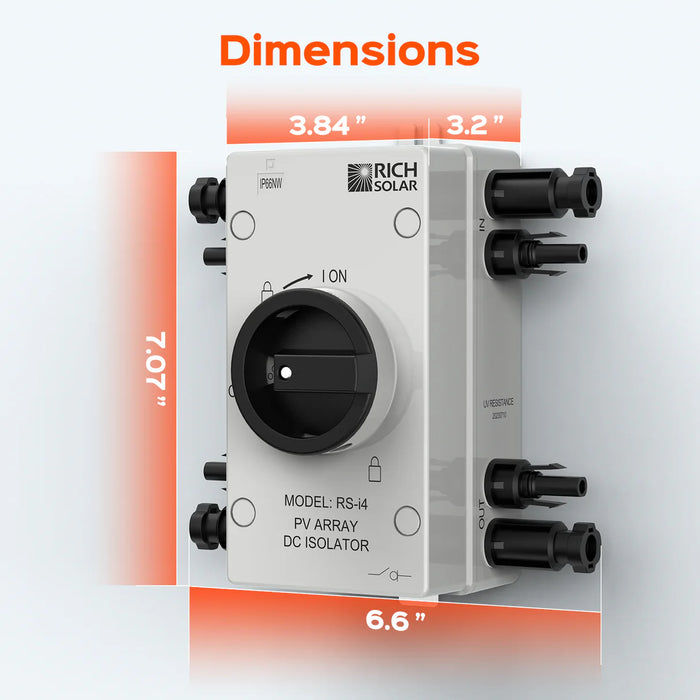

SOLAR PV DC Quick Disconnect Switch (RS-i4)
- 1500 Volts @ 32 Amps
- Waterproof: IP66NW
- Dimensions (HxWxD): 7.1 x 6.8 x 4.3 in
- Net Weight: 1.7lb
- Warranty: 10 Years
