Sungold Power 6.5KW 48V Split Phase Solar Inverter

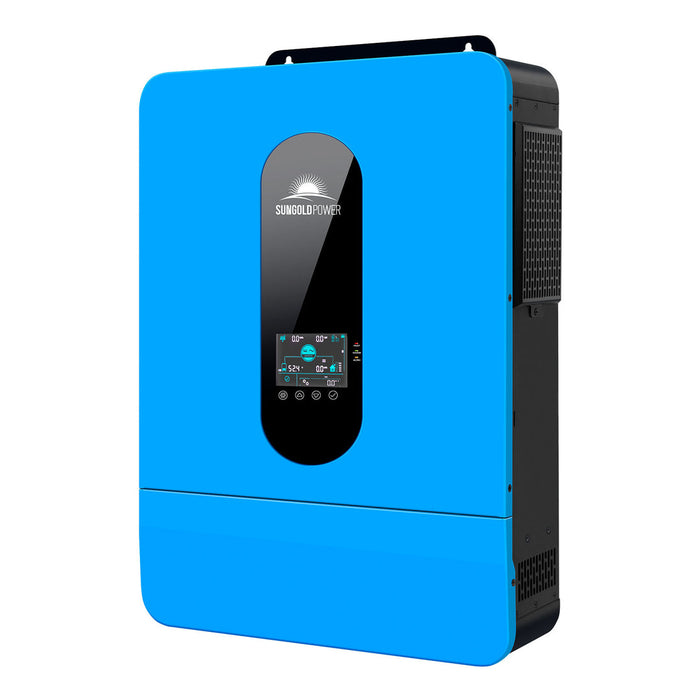

The Sungold Power SPH6548P 6.5KW 48V Split Phase Solar Inverter

The Sungold Power SPH6548P 6.5KW 48V Split Phase Solar Inverter is a powerful all-in-one energy solution, engineered for seamless integration into residential, commercial, and off-grid power systems. Combining pure sine wave inverter technology, dual MPPT solar charge controllers, and a high-capacity battery charger, this unit delivers exceptional performance and flexibility. Whether you’re running on solar, grid, or battery power, the SPH6548P adapts to your energy needs with precision. Integrated Wi-Fi capability allows you to monitor real-time performance and system parameters directly from your mobile device, ensuring you stay informed and in control.

What’s Included with the Sungold Power 6.5KW 48V Split Phase Solar Inverter

This package includes the 6.5KW SPH6548P solar inverter, an integrated Wi-Fi monitoring module, a built-in dual MPPT solar charge controller supporting up to 550VDC open circuit voltage, and a parallel kit for scalable power configurations. All required connection terminals for AC input/output, PV input, and battery bank are included, along with detailed instructions for easy installation and setup.

Why Choose The Sungold Power 6.5KW 48V Inverter

High Power All-in-One Design

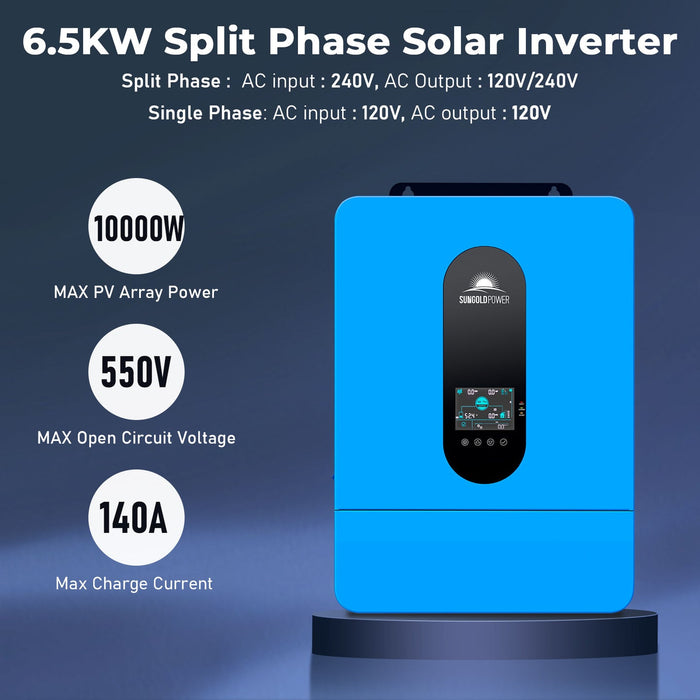

The SPH6548P combines a 6.5KW pure sine wave inverter with 140A maximum battery charging and dual MPPT solar charge controllers. This integration streamlines your energy system by eliminating the need for multiple separate components.

Flexible Output Options
Delivers split phase 120V/240V output or single phase 120V output, making it ideal for a wide range of residential and commercial applications.

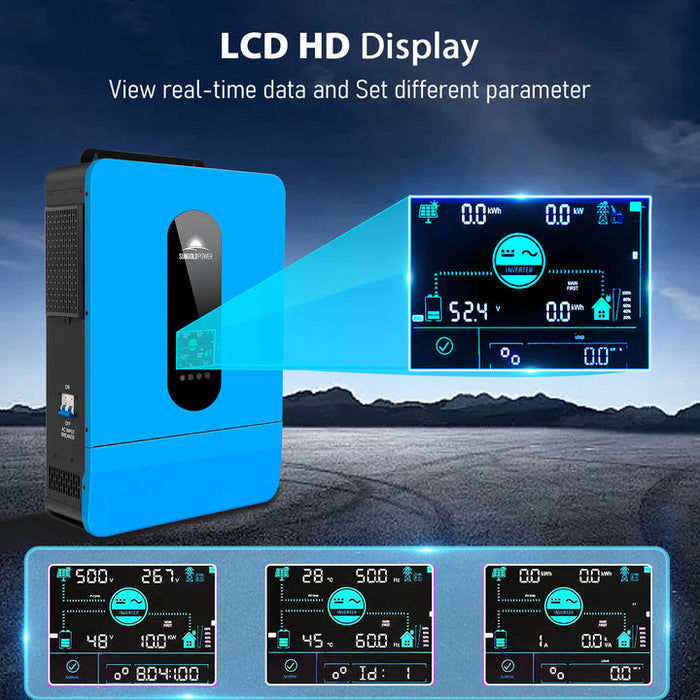

Wi-Fi Monitoring for Total Visibility
The built-in Wi-Fi module connects easily to your mobile phone, allowing you to view system performance, track power production, monitor battery levels, and adjust settings from anywhere.

Scalable Parallel Capacity
With the included parallel kit, up to six inverters can be connected, delivering a total output capacity of up to 39KW. Supports 120V single phase, 120V/240V split phase, or 208V 3-phase power, enabling you to scale your system as your power needs grow.

Smart Protection and Safety Features
Equipped with advanced protection features including PV input over-voltage/current protection, AC input over-voltage protection, battery over-voltage protection, and overload protection, ensuring safe and stable system operation.

Multiple Charging and Output Modes
Choose from Hybrid Charging, Utility Priority Charging, Solar Priority Charging, or Only Solar Charging to match your energy strategy. Output modes include Utility Priority, Solar and Utility Hybrid, Solar Priority, and Inverter Priority for maximum flexibility.

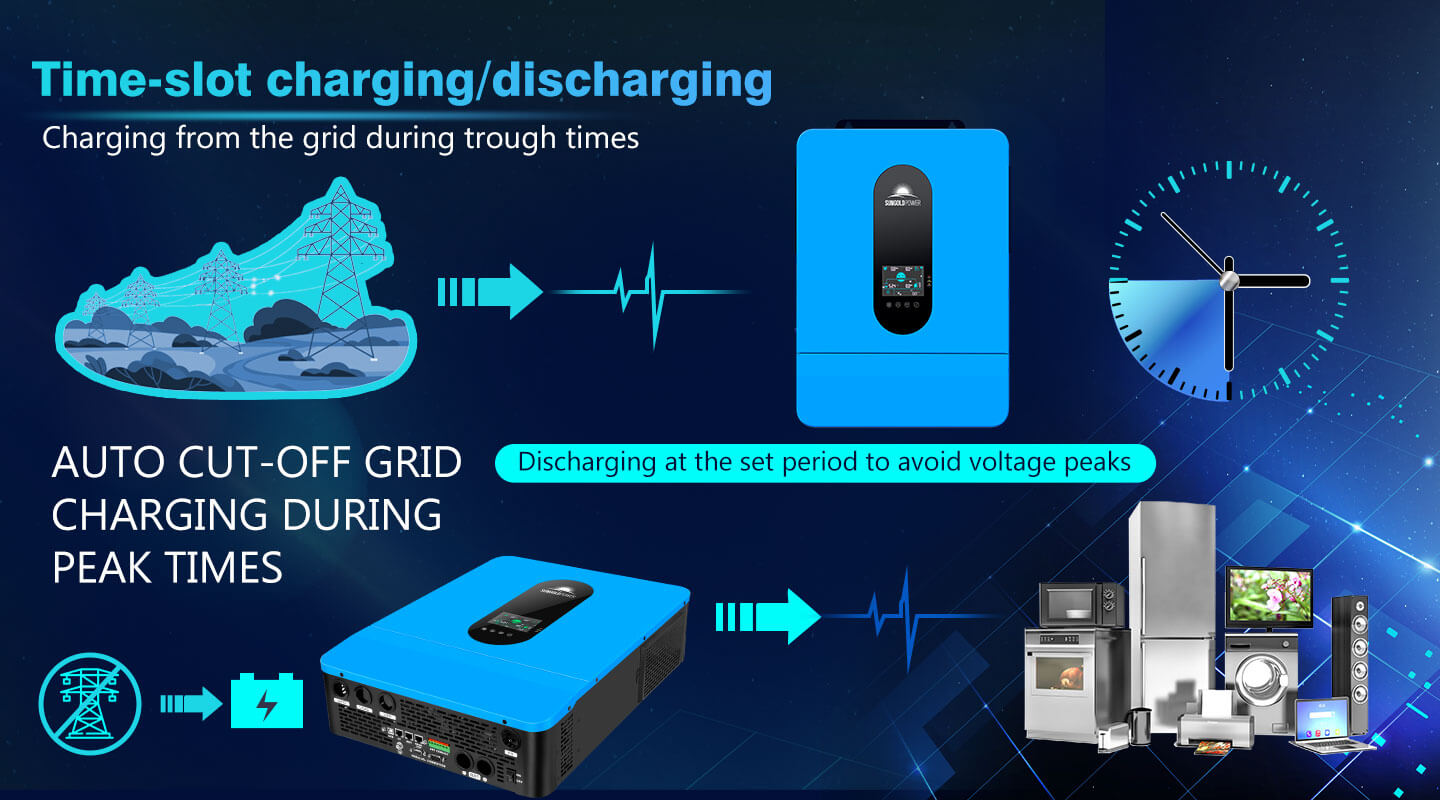

Time-Slot Charging and Discharging
Take advantage of the built-in time-slot function to charge or discharge your batteries based on local peak and off-peak utility rates, optimizing your energy costs by automatically managing power flow.

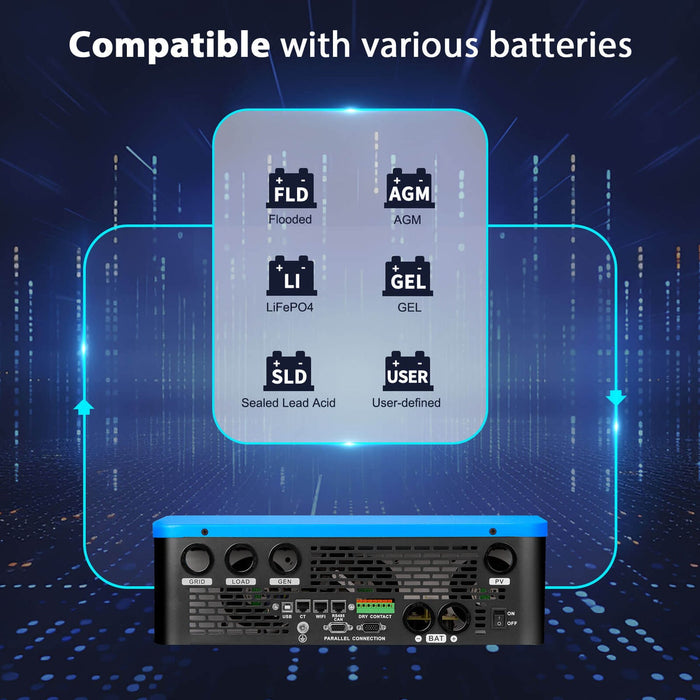

Broad Battery Compatibility
Supports a wide range of 48V battery types including AGM/Sealed, Gel, Flooded, Lithium, and customizable User Modes. It can operate without batteries if needed and includes features to activate lithium batteries from dormant states.

Advanced Communication Compatibility
Supports CAN and RS485 communication protocols for seamless integration with SunGoldPower batteries and other advanced battery management systems.

Reliable, intelligent, and designed for long-term performance, the Sungold Power SPH6548P is a versatile solution that adapts to your changing power needs while maximizing your solar investment.
