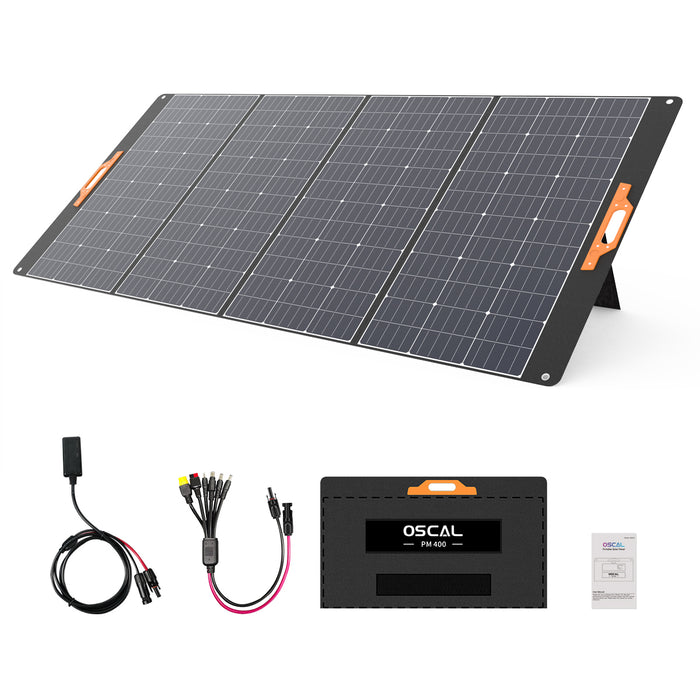

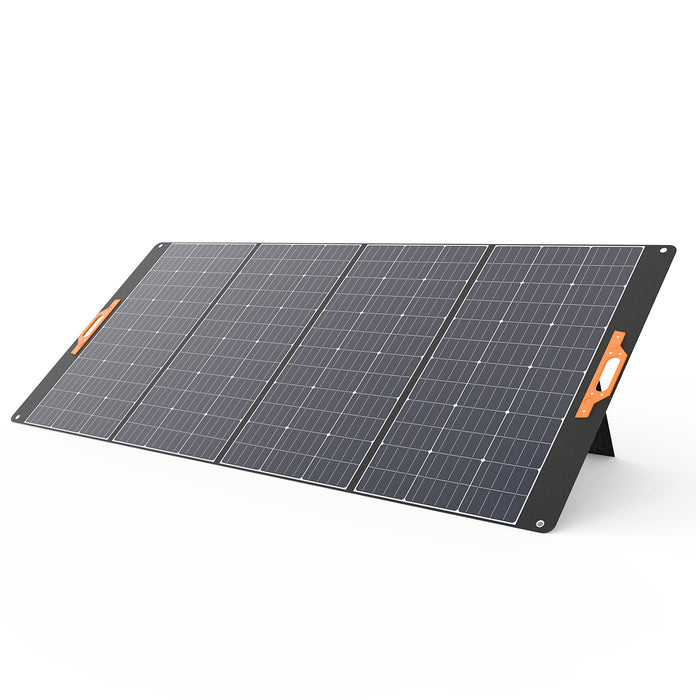

OSCAL PM400 PLUS Solar Panel

The OSCAL PM400 PLUS Solar Panel, Model PM 400, is a 400W solar panel designed to convert sunlight into electricity for compatible solar energy systems. Whether you are exploring off-grid power, preparing for outdoor adventures, or looking for a way to generate electricity away from the power grid, a solar panel can help you make use of an available renewable power source.

Solar panel performance depends on factors such as sunlight, solar irradiance, panel positioning, and operating conditions. The PM400 PLUS features monocrystalline silicon cells and a stated solar cell conversion efficiency of at least 22.7%. These specifications help shoppers evaluate its potential for portable solar energy production and determine whether its power output suits their intended application.

For RV enthusiasts, campers, and homeowners considering off-grid power options, choosing the right solar panel starts with understanding its rated wattage, electrical characteristics, dimensions, and compatibility with the rest of the power system. The OSCAL PM400 PLUS provides a 400W rated power output for customers planning a compatible solar energy setup.

Key Features of the OSCAL PM400 PLUS Solar Panel

The 400W maximum rated power gives you a defined starting point when planning solar energy production. Actual output varies with solar irradiance, panel orientation, shading, temperature, and other environmental conditions. Understanding these factors helps you estimate the amount of power available and determine whether one panel or a larger solar installation better fits your needs.

The panel uses monocrystalline silicon cells with a stated conversion efficiency of at least 22.7% and ETFE cell lamination. These technical details help buyers compare solar panel efficiency and construction when evaluating products for portable or off-grid power. The listed electrical specifications include a maximum power voltage of 39.6V ±5%, maximum power current of 10.1A ±5%, open-circuit voltage of 47.52V ±5%, and short-circuit current of 11.11A ±5%.

Designed to operate within a stated temperature range of -10°C to +65°C, the panel measures 2333 × 1048 × 25mm when unfolded and 532 × 1000 × 63mm when folded. Its listed weight is 17kg ±1kg. These measurements are important when assessing storage space, portability, and the available area for positioning the panel. Before integrating it into an existing solar energy system, confirm that the system's voltage and current limits are compatible with the panel's specifications.

For camping and RV trips, a compatible solar energy setup can provide a way to generate electricity when access to conventional outlets is limited. The PM400 PLUS's 400W rating helps you begin assessing its potential contribution to a portable power station or other compatible system. Actual energy production depends on the amount of sunlight available and the requirements of the connected equipment.

For cabins, sheds, and off-grid properties, solar panels can form part of a broader power system designed to collect energy during daylight hours. The amount of power available depends on local solar irradiance, seasonal conditions, panel placement, and the capacity of the connected equipment to accept and store energy. A panel alone does not guarantee a continuous power supply, particularly at night or during extended periods of poor weather.

Homeowners preparing for power outages can also consider solar energy as one part of a backup power plan. To determine whether the PM400 PLUS is suitable, compare the electrical requirements of your intended power station or solar equipment with the panel's voltage and current specifications. Correct compatibility matters because solar panels, batteries, inverters, and charge controllers must work together as a properly matched system.

Specifications

OSCAL PM400 PLUS Solar Panel Specifications

FAQ'S

Frequently Asked Questions About the OSCAL PM400 PLUS Solar Panel

What is the maximum power output of the OSCAL PM400 PLUS Solar Panel?

The supplied specifications list a maximum power rating of 400W ±5%. This is the panel's rated power under applicable test conditions, not a guarantee that it will produce 400 watts continuously. Actual solar panel performance depends on sunlight intensity, solar irradiance, temperature, shading, and panel orientation.

How much electricity can a 400W solar panel generate in a day?

Daily solar energy production depends on the number of effective peak-sun hours and the conditions in which the panel operates. A 400W rating alone is not enough to determine the exact daily energy output. To estimate production, consider local solar irradiance and account for real-world losses from positioning, temperature, shading, and connected equipment.

Is the OSCAL PM400 PLUS suitable for off-grid power?

The panel may be used as part of a compatible off-grid power system. Before connecting it, check the voltage and current requirements of the receiving power station, battery-charging equipment, or solar charge controller. The panel by itself does not store electricity or provide AC power directly to household appliances.

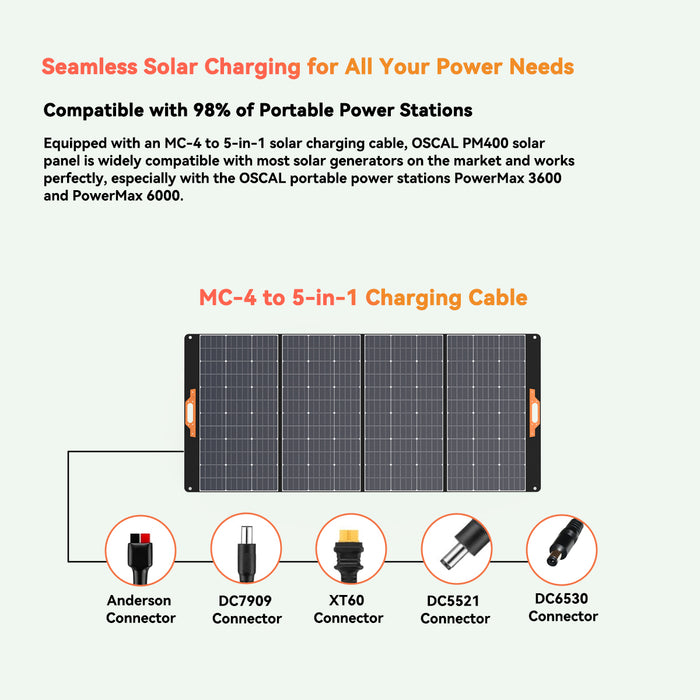

Can I use this solar panel with a portable power station?

Compatibility depends on the power station's supported solar input voltage, current, connector type, and maximum solar charging wattage. The PM400 PLUS specifications list 39.6V ±5% maximum power voltage and 47.52V ±5% open-circuit voltage. Confirm that the receiving device supports these electrical characteristics before connecting the panel.

Can the OSCAL PM400 PLUS provide backup power during an outage?

It can contribute to a compatible solar backup system, but the panel alone cannot power appliances directly as a complete backup solution. A suitable power station or other compatible equipment may be needed to regulate, store, or convert the electricity. The size of the overall system should reflect the appliances you want to operate and how long you need to run them.

What does the panel's 22.7% conversion efficiency mean?

The stated conversion efficiency of at least 22.7% describes the proportion of incident solar energy converted into electrical energy under the relevant test conditions. It is useful when comparing panels, but it does not mean the panel will continuously operate at 22.7% of its rated output in every environment. Real-world output varies with sunlight and operating conditions.

What is the difference between maximum power voltage and open-circuit voltage?

Maximum power voltage, listed as 39.6V ±5%, is the voltage associated with the panel's rated maximum-power operating point. Open-circuit voltage, listed as 47.52V ±5%, is measured when the panel is not connected to a load. Both figures matter when checking compatibility with a solar power station or charge controller.

 What do maximum power current and short-circuit current mean?

The supplied specifications list maximum power current at 10.1A ±5% and short-circuit current at 11.11A ±5%. Maximum power current relates to operation at the rated maximum-power point, while short-circuit current is measured when the panel's output terminals are shorted under the relevant test conditions. These ratings help determine whether connected solar equipment can safely accept the panel's electrical output.

Can I connect multiple OSCAL PM400 PLUS solar panels together?

Multiple panels may increase the potential solar power available, but the correct configuration depends on the connected equipment's voltage, current, and maximum solar input limits. Connecting panels in series increases voltage, while connecting them in parallel increases current. Do not connect multiple panels until you have verified the equipment manufacturer's limits and the requirements of the complete solar energy system.

Is this panel suitable for an RV or camper?

The PM400 PLUS may be considered for an RV or camping power setup when its dimensions, weight, electrical ratings, and connection requirements suit the intended installation. Its listed weight is 17kg ±1kg, so buyers should plan how it will be transported, positioned, and secured. Confirm compatibility with your power station or charging equipment before use.

Can I use the OSCAL PM400 PLUS to power a cabin or shed?

The panel may form part of an appropriately sized solar energy system for a cabin or shed. Whether it can meet your needs depends on the total electricity consumption, available sunlight, storage capacity, and connected equipment. Calculate the energy demand of your lights, tools, electronics, or other devices before deciding how many panels and what additional components are required.

Does solar irradiance affect the panel's power output?

Yes. Solar irradiance describes the solar power reaching a given area and has a direct influence on the electricity a panel can generate. Strong, unobstructed sunlight generally supports higher output than shaded or heavily overcast conditions. Local weather, season, time of day, and panel angle all affect solar energy production.

Will the panel generate electricity on cloudy days?

Solar panels can generate electricity when sunlight is diffused by clouds, but their output may be lower than in direct, strong sunlight. The amount of power available depends on cloud cover and the local solar irradiance. If you rely on solar power for important equipment, consider how reduced output may affect charging and plan storage capacity accordingly.

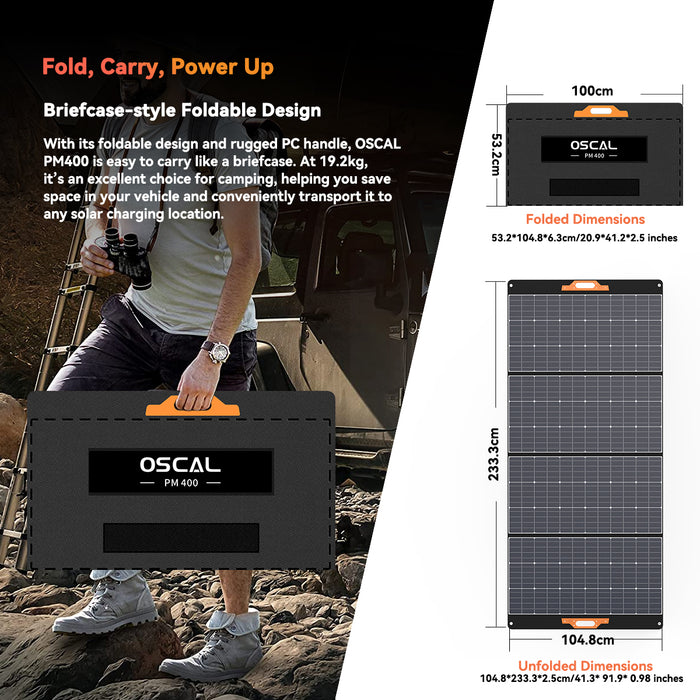

What are the folded and unfolded dimensions of the PM400 PLUS?

The supplied product details list unfolded dimensions of 2333 × 1048 × 25mm and folded dimensions of 532 × 1000 × 63mm. Check both sets of measurements against your storage area and intended placement location. The available space matters when transporting the panel or setting it up to collect sunlight.

What temperatures can the OSCAL PM400 PLUS operate in?

The supplied specifications state an operating temperature range of -10°C to +65°C. Actual performance can still vary with environmental conditions, and operating temperature should not be confused with a guarantee of identical power output throughout that range. Follow the manufacturer's handling and operating instructions when using the panel outdoors.

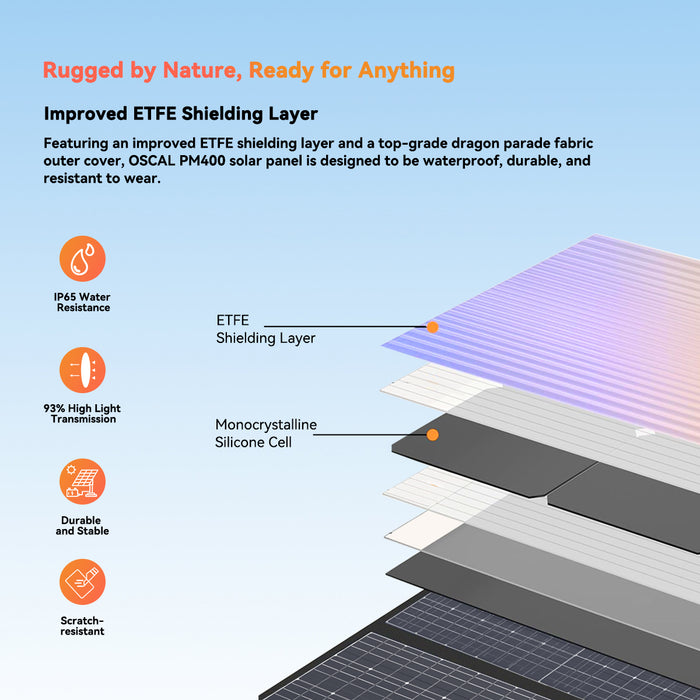

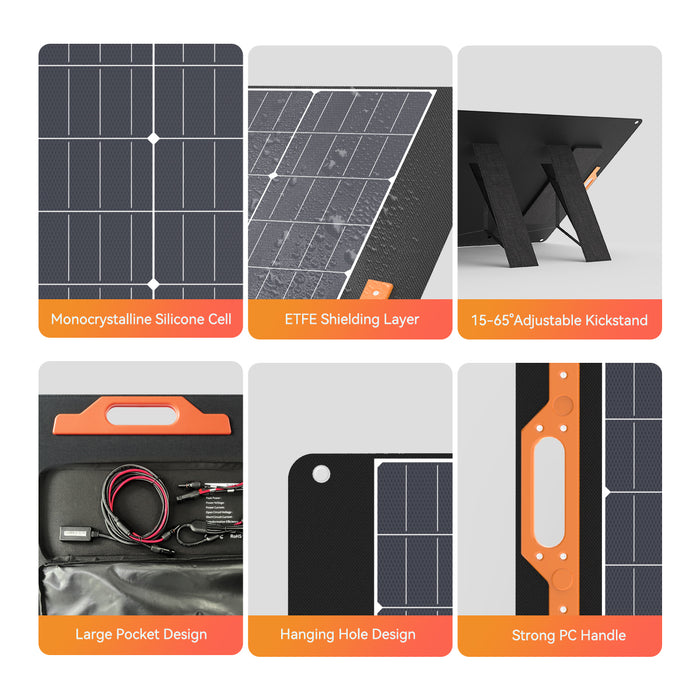

What type of solar cells does the panel use?

The PM400 PLUS product details supplied for this page identify monocrystalline silicon as the cell type and ETFE as the cell lamination. These are useful specifications to consider when comparing solar panels. Buyers should also evaluate rated wattage, electrical compatibility, dimensions, and the needs of their intended power system rather than choosing solely by cell type.

Can I connect the panel directly to household appliances?

The supplied specifications do not establish that the panel can directly power household appliances. Solar panels provide DC electricity, and many household devices require a compatible power station or inverter to supply the appropriate AC power. Use equipment designed for the panel's electrical ratings and follow the manufacturer's connection instructions.

Can the PM400 PLUS be used in a rooftop solar system?

Whether this panel is suitable for a particular rooftop solar installation depends on the mounting arrangement, weather exposure, electrical design, and compatibility with the rest of the system. The supplied dimensions and electrical ratings can help with initial planning, but they do not establish that the panel is approved for every rooftop configuration. Confirm installation requirements with the manufacturer or a qualified solar installer.

How should I maintain a solar panel to support reliable performance?

Keep the panel's light-receiving surface clear of dirt, dust, leaves, and other obstructions, using cleaning methods permitted by the manufacturer. Inspect the panel and its connections for visible damage before use. Avoid assuming that maintenance alone will guarantee a particular power output, since sunlight, temperature, shading, and equipment compatibility also affect performance.

What should I check before purchasing the OSCAL PM400 PLUS Solar Panel?

Start by confirming that the 400W power rating, 39.6V ±5% maximum power voltage, and 47.52V ±5% open-circuit voltage are suitable for your receiving equipment. Then check the panel's dimensions, weight, operating temperature range, and the physical accessories supplied with the product. Matching the panel to your intended power system is an important step toward getting useful, reliable solar energy production.
