PECRON PV500 500W Bifacial Portable Solar Panel Waterproof IP67

Portable 500W Solar Power for Off-Grid Living, RVs, Camping, and Home Backup

Generate more of your own electricity wherever the sun shines with the PECRON PV500 500W Bifacial Portable Solar Panel. Designed for portable power stations and off-grid solar energy systems, this high-output folding panel helps recharge compatible solar generators without relying entirely on a wall outlet or the utility grid. With a maximum rated output of 500W, high-efficiency monocrystalline solar cells, and a bifacial design that can capture reflected sunlight from the rear side, the PV500 is a practical choice for homeowners, RV enthusiasts, campers, and anyone preparing for power outages.

Unlike a permanently installed rooftop solar system, this portable 500W solar panel can be positioned where sunlight is strongest and packed away when it is no longer needed. Use it to replenish a compatible power station at a campsite, provide supplemental charging for an off-grid cabin, or help maintain stored energy for essential electronics and appliances during an outage. Its foldable design offers a flexible alternative to fixed solar panels when portability, adaptable placement, and access to independent power sources matter.

Choose the PECRON PV500 500W Bifacial Portable Solar Panel if you want a high-output, foldable solar charging solution for travel, outdoor recreation, or compatible off-grid power systems. Its 500W rating, up-to-25.1% cell efficiency, bifacial design, and IP67 protection make it a versatile option for adding solar charging capacity without committing to a permanent rooftop installation. Before ordering, confirm compatibility with your power station or charge controller and consider how much energy your devices use each day.

Specifications

PECRON PV500 500W Bifacial Portable Solar Panel Waterproof IP67 Specifications

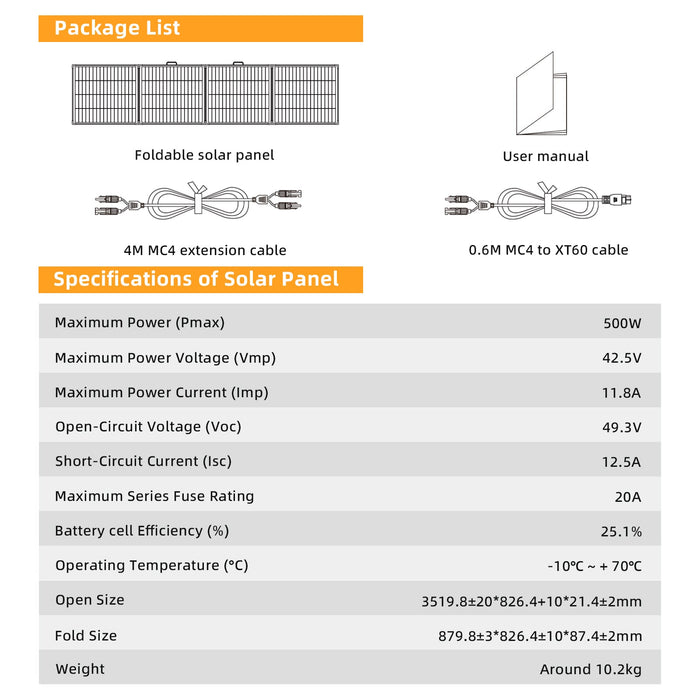

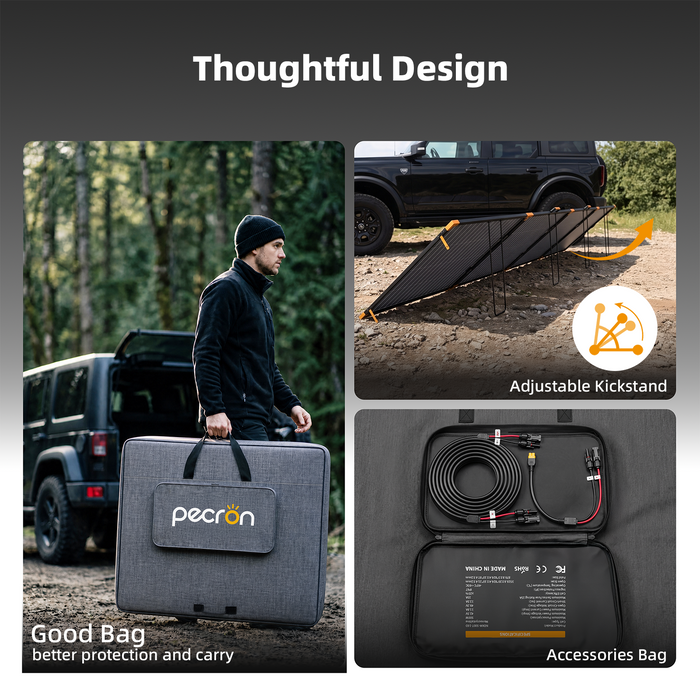

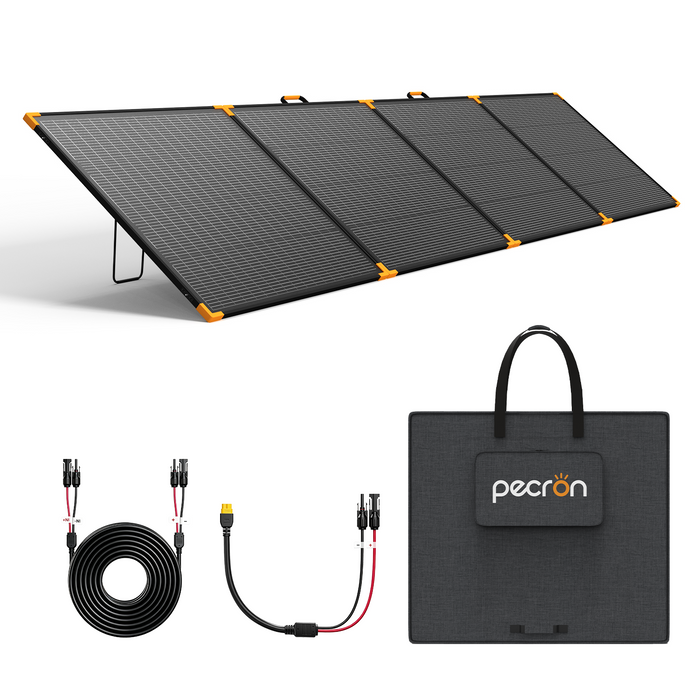

The PECRON PV500 package includes one 500W bifacial portable solar panel, a 4-meter MC4 extension cable, a 0.6-meter MC4-to-XT60 adapter cable, and a user manual. The included cables help simplify connection to compatible solar generators and power stations, provided their solar input specifications support the panel's voltage and current. A protective storage bag is also included.

FAQ'S

Frequently Asked Questions About the PECRON PV500 500W Bifacial Portable Solar Panel

How much electricity can the PECRON PV500 500W solar panel generate per day?

The PV500 has a maximum rated output of 500W under specified test conditions. Daily energy production depends on peak-sun hours, panel angle, shading, temperature, and system losses. As a simple illustration, four equivalent peak-sun hours multiplied by 500W equals 2,000Wh, or 2kWh, before losses. Actual production may be substantially lower in cloudy weather, winter conditions, or shaded locations.

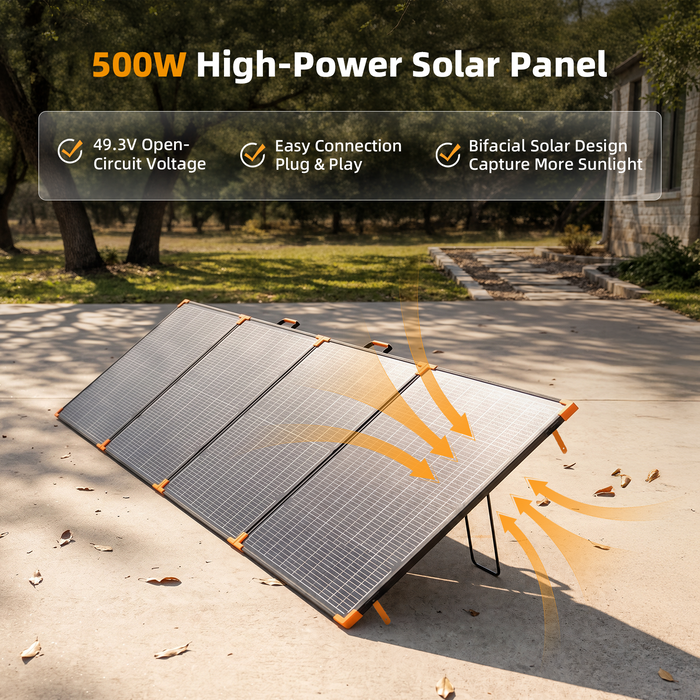

What does bifacial solar panel technology mean?

A bifacial solar panel can collect sunlight from both its front and rear surfaces. The front receives direct sunlight, while the rear can capture reflected light from surfaces such as light-colored concrete, sand, or other reflective ground. The additional energy harvested varies with the installation and surroundings; a dark or shaded surface may provide little benefit. Bifacial technology does not guarantee a fixed percentage increase in output.

Is the PECRON PV500 compatible with all portable power stations?

No. Compatibility depends on the power station's maximum permitted solar input voltage, current, wattage, connector, and charging requirements. The PV500's published electrical figures include a 42.5V maximum-power voltage (Vmp) and 49.3V open-circuit voltage (Voc). Check the power station's specifications and confirm that its solar input can safely accept these values before connecting the panel.

Can I connect the PV500 directly to a home battery?

Not automatically. A battery generally requires a compatible solar charge controller or an integrated charging system designed for the panel's voltage and current. Connecting a panel directly to a battery without appropriate regulation and protection can damage equipment or create a safety hazard. Confirm the battery chemistry, charging voltage, controller ratings, and manufacturer's wiring requirements before integrating the PV500 into a fixed solar energy system.

Can I use the PECRON PV500 as an RV solar panel kit?

Yes, it can be used as the solar panel component of an RV charging setup when paired with a compatible portable power station or properly designed RV solar system. Its portable construction allows you to position the panel outside the vehicle where sunlight is available. It is not, by itself, a complete RV solar panel kit because it does not include a battery or inverter.

Is one PV500 enough to power an off-grid cabin or shed?

That depends on the energy requirements of the cabin or shed. The PV500 may be suitable for charging a power station used for lighting, phones, laptops, communications devices, and other modest loads. Refrigerators, pumps, heating appliances, and power tools can require much more energy or high startup power. Calculate daily consumption in watt-hours and compare it with realistic local solar production before choosing the number of panels and battery capacity.

Can I use the PV500 as part of a solar panel kit with a battery and inverter for a shed?

Yes, provided the panel is paired with a compatible battery, solar charge controller, and inverter if AC power is required. The controller must support the panel's voltage and current, and the battery must be charged according to its specifications. The inverter must be sized for both the continuous wattage and startup surge of the connected appliances. The PV500 alone does not supply battery storage or convert DC electricity into AC power.

What do the PV500's 500W, Vmp, and Voc ratings mean?

The 500W rating is the panel's maximum rated power under specified test conditions. Vmp, or maximum-power voltage, is the approximate voltage at which the panel produces its rated maximum power; the PV500's listed Vmp is 42.5V. Voc, or open-circuit voltage, is the voltage measured when the panel is not connected to a load; its listed Voc is 49.3V. Voc can rise in cold conditions, so system designers should check the panel's temperature characteristics and the controller's maximum voltage rating.

Does the PV500 produce 500W continuously in direct sunlight?

No. The 500W figure is a rated maximum under specified test conditions, not a guaranteed constant output. Actual output changes with sunlight intensity, panel temperature, orientation, shading, surface cleanliness, and the connected equipment's charging limits. Even in strong sunshine, a power station may draw less than the panel can produce if its solar input is limited or its battery is nearly full.

How can I optimize solar power output from the PV500?

Position the panel where it receives unobstructed sunlight, orient it toward the sun, and adjust the angle as conditions change. Avoid shadows from trees, vehicles, buildings, and other objects. When using bifacial generation, allow reflected light to reach the rear surface. Monitor the charging input on your compatible power station, and compare readings as you change the panel's position to identify the best practical setup.

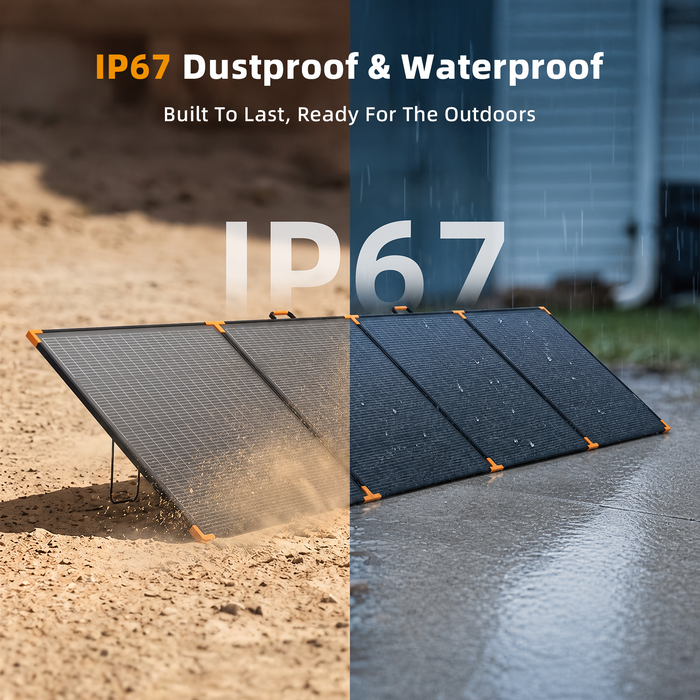

What does the IP67 waterproof rating mean for portable solar panel use?

IP67 indicates protection against dust ingress and a specified level of temporary immersion under standardized test conditions. It is useful for outdoor equipment that may encounter rain or dust, but it does not mean the panel should be submerged deliberately or used carelessly in severe weather. Check the rating and handling instructions for connectors, adapters, cables, and connected power stations separately.

Can I leave the PECRON PV500 outside overnight?

Follow PECRON's handling and storage instructions for your specific panel. Although the panel is rated IP67, leaving portable equipment outside overnight can expose it to condensation, temperature extremes, wind, debris, or accidental damage. Fold and store the panel when practical, and protect connectors and connected power equipment according to their own ratings. Do not assume that every component in the solar setup is waterproof because the panel is IP67-rated.

Can I connect two or more PV500 solar panels together?

Possibly, but only if the connected power station or charge controller supports the combined electrical characteristics. Connecting panels in series increases voltage, while connecting them in parallel increases current. Either arrangement can exceed equipment limits if designed incorrectly. Calculate the combined open-circuit voltage and short-circuit current, account for cold-weather voltage increases where relevant, and use appropriately rated cables and protection. Never connect additional panels solely because the total wattage appears compatible.

Does the PV500 include a solar monitoring system?

The panel itself is a solar generation component and is not described as having a standalone digital monitoring system. When connected to a compatible power station, you may be able to view solar input watts and charging status through the station's display or supported monitoring features. Monitoring capabilities depend on the connected equipment. Observing real-time input can help you assess placement, changing solar irradiance, and charging performance.

How does solar irradiance affect the PV500's power output?

Solar irradiance describes the amount of solar power reaching a given area. Higher irradiance generally allows the PV500 to generate more electricity, while cloud cover, shade, low sun angles, and seasonal changes reduce available energy. Solar irradiance maps can help estimate the solar resource for a location, but they cannot predict exact daily output from a portable panel because local weather and panel positioning also matter.

Can the PV500 provide backup power during a grid outage?

The panel can recharge a compatible solar generator or battery system during an outage when sufficient sunlight is available. The stored energy can then supply supported devices through the connected power station or inverter. However, the panel does not independently power AC appliances, and solar generation can fluctuate throughout the day. For essential backup loads, plan for sufficient battery storage, inverter capacity, and energy reserves for periods of low sunlight.

Is the PV500 suitable for charging a CPAP machine, laptop, or refrigerator?

The PV500 can contribute energy to a compatible power station that supplies these devices, but suitability depends on the power station's battery capacity, output ratings, and the device's energy consumption. A laptop or CPAP machine may use relatively modest energy, while a refrigerator can consume considerably more and may require a high startup surge. Check the appliance's wattage and daily watt-hour requirements, and account for conversion losses and nighttime use.

What is the difference between a portable bifacial panel and a fixed rooftop solar panel?

A portable bifacial panel such as the PV500 can be unfolded, repositioned, and stored when not in use. This flexibility is valuable for camping, RV travel, temporary setups, and mobile backup charging. Fixed rooftop solar panels are typically installed as part of a larger system designed around roof orientation, structural requirements, electrical protection, and long-term energy production. The PV500 is designed for portable applications rather than utility-scale solar farms or permanent rooftop installations.

How should I maintain the PECRON PV500 to preserve solar panel performance?

Keep the panel's light-collecting surfaces free of dust, dirt, and debris using cleaning methods approved by the manufacturer. Inspect cables and connectors for wear, avoid sharp bends or excessive strain, and store the folded panel in a suitable location when it is not being used. Follow the manufacturer's instructions for cleaning and handling, and avoid abrasive materials or chemicals that could damage the panel surface. Proper care can help maintain performance over time, although no specific lifespan should be assumed without the manufacturer's published warranty and durability information.

What should I check before buying the PECRON PV500 for an off-grid solar power system?

Start by confirming that your power station or charge controller supports the PV500's voltage, current, connector, and rated wattage. Then estimate your daily energy demand, local peak-sun hours, expected seasonal production, and required battery storage. Consider whether you need only portable solar charging or a more complete solar panel kit with a battery and inverter for an RV, cabin, or shed. Checking these factors before ordering helps you choose a compatible setup and set realistic expectations for solar energy production.
