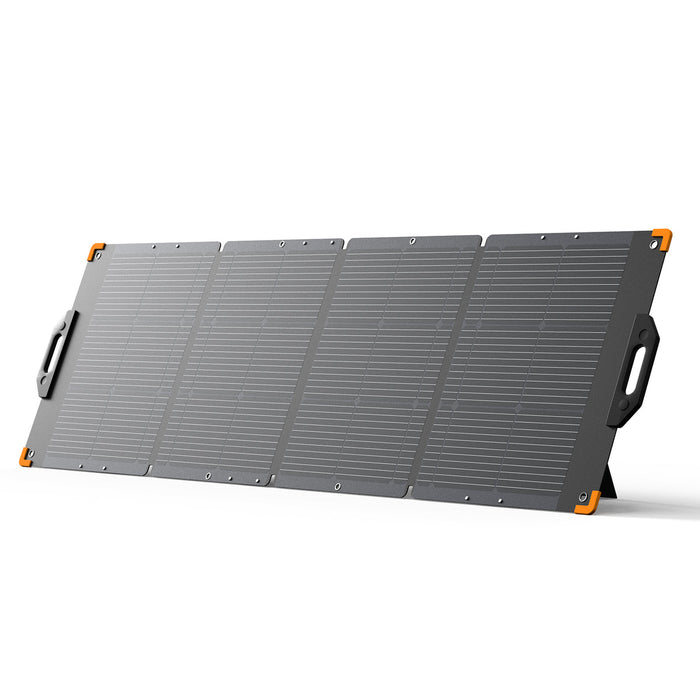

PECRON PV200 200W Portable Solar Panel Waterproof IP67 | Foldable Solar Charging Panel
The PECRON PV200 200W Portable Solar Panel Waterproof IP67 is designed for customers who want dependable portable solar power without the complexity of permanent installation. Combining a lightweight foldable design, high-efficiency solar cells, and rugged outdoor durability, this portable solar panel creates a practical solution for homeowners, RV travelers, cabin owners, campers, ADU properties, and anyone preparing for energy independence.
Whether you are building a solar generator kit for homes, expanding a portable power station setup, creating an off grid solar system, or preparing for unexpected power outages, the PECRON PV200 helps convert available sunlight into usable electricity wherever energy is needed. With a 200W rated output, advanced cell efficiency of 22.5% or greater, and universal MC4 compatibility, this panel provides an accessible and affordable way to begin using solar energy.
For customers exploring solar panel kits for sheds, solar for camping, solar for cabin living, or portable solar energy systems that support emergency preparedness and energy resilience, the PECRON PV200 offers a lightweight and efficient path toward cleaner power and greater independence from the grid.

PECRON PV200 200W Portable Solar Panel Key Features
The PECRON PV200 is engineered around portability and performance. This 4-fold 200W solar panel operates at 36V with a nominal current of 5.4A and supports efficient energy collection across changing environmental conditions. With open-circuit voltage of 41.4V and MC4 connectors for broad compatibility, the panel integrates easily with many solar generators and portable power stations, making it ideal for customers building flexible solar energy systems.
Built for real-world outdoor conditions, the PV200 features IP67 waterproof protection to help safeguard performance during changing weather environments. Combined with an operating temperature range from -10°C to +65°C, this panel supports dependable solar energy production for outdoor recreation, emergency backup, and mobile energy applications. Its high conversion design captures more available solar irradiance and improves overall solar panel performance compared to conventional portable panels.
Portability remains one of the strongest advantages of the PECRON PV200. Weighing approximately 6.9kg and featuring a compact folded profile, the panel transports easily in vehicles, RV storage compartments, cabins, garages, and utility spaces. When deployed, the large collection surface helps optimize solar output and improve charging efficiency throughout the day.
Specifications
PECRON PV200 200W Portable Solar Panel Waterproof IP67

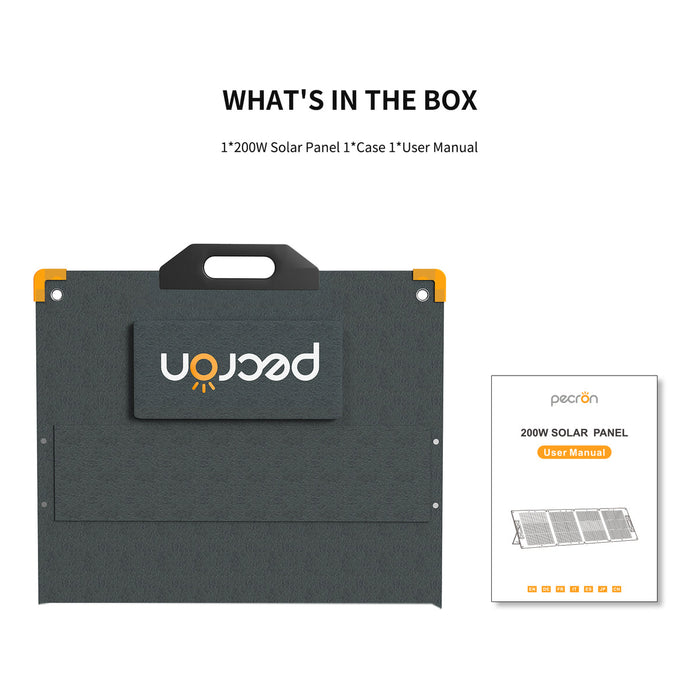

Inside the box, customers receive the PECRON PV200 200W Portable Solar Panel with integrated foldable construction and pre-installed MC4 connectors for immediate compatibility with supported charging systems and solar generators. The folding architecture allows for fast deployment and efficient storage between uses.
The package is designed to simplify setup so users can begin generating solar energy with minimal preparation. Simply unfold the panel, position it for optimal sunlight exposure, connect through the MC4 interface, and begin charging compatible energy storage systems. Its streamlined design makes portable solar more approachable for first-time users and experienced off-grid customers alike.

- PECRON PV200 Solar Panel: 4-Fold 200W 36V Solar Panel
- Nominal Power: 200W(-5W~+10%)
- Operating Voltage: 36V±5%
- Operating Current: 5.4A±5%
- Open-Circuit Voltage (Voc): 41.4V(±5%)
- Short-Circuit Current (Isc): 5.7A(±5%)
- RatingFold Dimension: 561*595*40mm(±35mm)
- Unfold Dimension: 2064*595*5mm(+0.5mm)
- Weight: Around 6.9KG
- Connector: MC4
- Waterproof: IP67
- Cell Efficiency: ≥22.5%
- Working Temperature: -10°C-+65°C
FAQ Section
PECRON PV200 200W Portable Solar Panel Waterproof IP67
What devices can the PECRON PV200 charge?
The PV200 is designed to charge compatible portable power stations and energy storage systems that accept MC4 solar input connections.
Can the PECRON PV200 power appliances directly?
The solar panel itself generates electricity but typically connects to a battery power station before powering household devices.
Is the PECRON PV200 waterproof?
Yes. The panel carries an IP67 waterproof rating designed for outdoor environments and changing weather conditions.
What does 200W output mean?
A 200W rating represents the panel’s maximum ideal solar production under optimal sunlight conditions.
Can I use the PV200 during a power outage?
Yes. Combined with a compatible power station, it becomes an effective solar generator kit for emergency backup.
Does the panel work on cloudy days?
Yes, although total solar output will be lower than under direct sunlight.
Can I connect multiple PECRON PV200 panels together?
Compatible systems may support parallel solar configurations depending on power station specifications.
What connector does the panel use?
The PV200 includes universal MC4 connectors for broad compatibility.
Is this a good panel for RV use?
Yes. Its foldable design and portable format make it suitable for RV charging applications.
Can I use this for solar camping setups?
Yes. The PV200 is designed for portable outdoor use including camping and overlanding.
How efficient are the solar cells?
The panel delivers cell efficiency of 22.5% or greater for strong solar conversion performance.
Will high temperatures reduce performance?
Like all solar panels, output may vary with environmental conditions, but the panel is designed to perform efficiently in warmer climates.
Can the PECRON PV200 support off-grid living?
Yes. It is commonly used as part of portable off-grid energy systems.
How much space does the folded panel require?
The compact folded dimensions make storage easy in vehicles, garages, RV compartments, and cabins.
Can beginners install and use this panel?
Yes. The fold-open design and MC4 connectivity make setup straightforward.
Does this panel support solar monitoring systems?
Monitoring depends on the connected power station rather than the panel itself.
How long does portable solar equipment last?
Proper use and storage can provide many years of reliable operation.
Can this panel support solar charging for small homes or ADUs?
Yes. When paired with appropriate battery storage, it can supplement energy for small structures.
What is solar irradiance and why does it matter?
Solar irradiance measures available sunlight and directly influences charging performance.
Why choose a portable solar panel instead of rooftop solar?
Portable solar offers flexibility, lower upfront commitment, and mobility while still supporting solar energy use and backup power applications.
