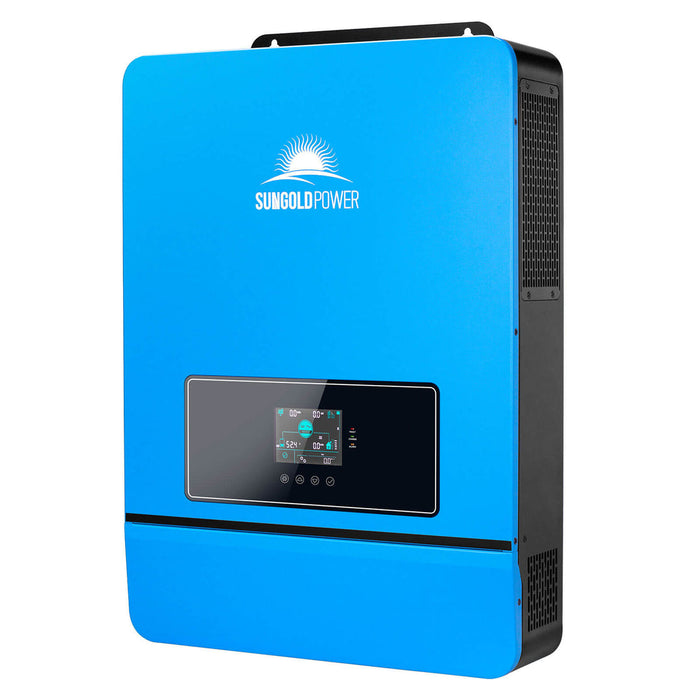

Sungold Power 10KW 48V Split Phase Solar Inverter

Sungold Power 10KW 48V Split Phase Solar Inverter  High-Performance All-in-One Power Solution

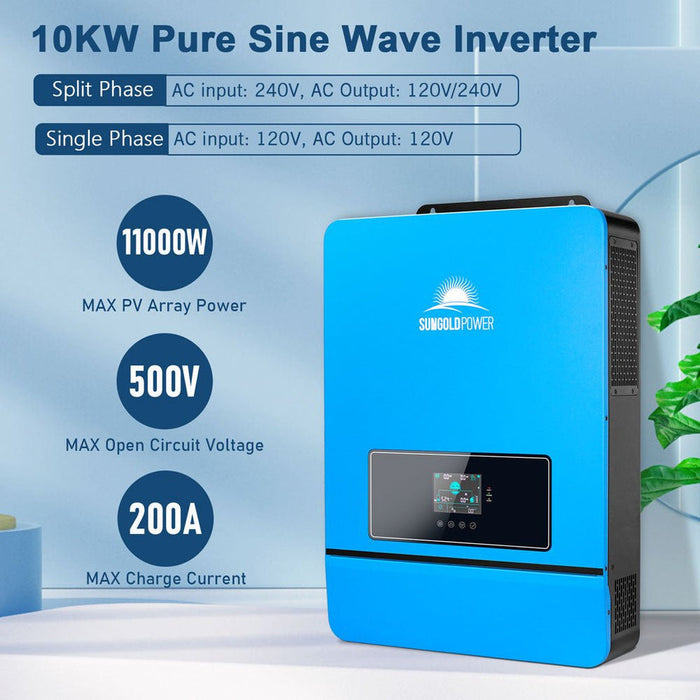

Sungold Power 10KW 48V Split Phase Solar Inverter is a powerful and versatile solution for off-grid solar systems, offering high efficiency, multiple power configurations, and smart monitoring capabilities. This all-in-one unit integrates a 10KW pure sine wave inverter, dual MPPT solar controllers, and a high-capacity 200A battery charger, ensuring seamless energy management. With a maximum open circuit voltage of 500VDC, it provides flexible output options, including split-phase (120V/240V) or single-phase (120V) configurations. The included Wi-Fi module allows real-time monitoring via a mobile app, giving users complete control over the inverter’s performance. Certified with UL 1741 by ETL, this inverter meets safety and reliability standards for off-grid solar applications.

Why Choose The 10KW 48V Split Phase Solar Inverter

Scalable Power and Parallel Operation

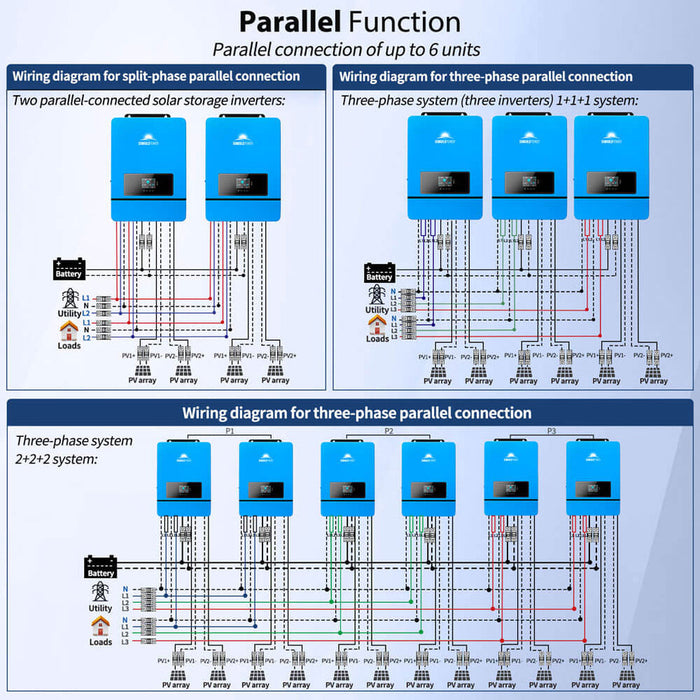

Designed for high demand applications, this inverter supports parallel operation of up to six units, achieving a total power output of 60KW. It provides flexible power options, including 120V single phase, 120V/240V split phase, and 208V three-phase configurations, making it suitable for residential, commercial, and industrial use.

Stable AC Output and Smart Protection
The inverter delivers 10,000W of continuous output power with a 20,000W peak surge capacity. It supports a motor load capacity of up to 6HP and features comprehensive protection mechanisms, including PV input over voltage/current protection, AC input over voltage protection, battery over voltage protection, and overload protection, ensuring safe and reliable operation.

Versatile Charging and Output Modes

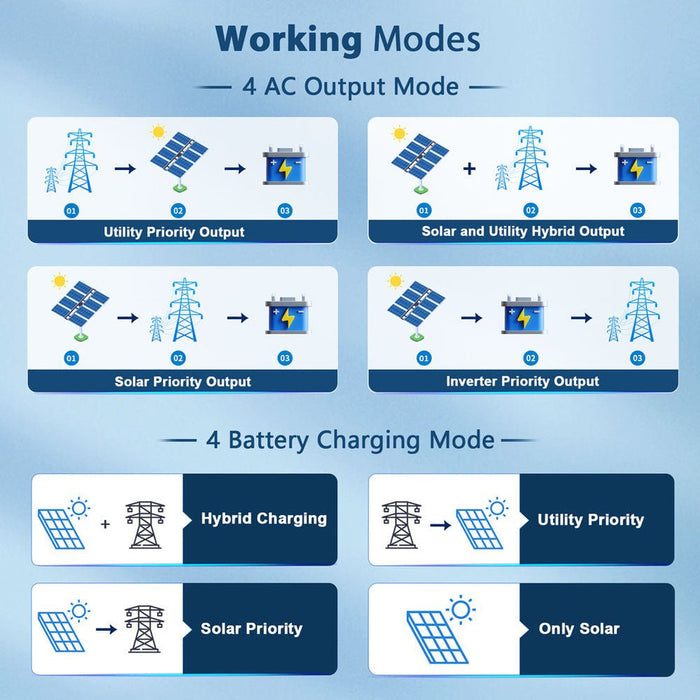

With four charging modes, Hybrid Charging, Utility Priority Charging, Solar Priority Charging, and Only Solar Charging. Users can optimize power consumption based on their needs. The inverter also supports four output modes, allowing users to prioritize between utility power, solar power, or hybrid configurations. The time-slot charging/discharging function enables users to schedule charging and discharging periods based on local peak and off-peak electricity tariffs, maximizing cost savings.

Universal Battery Compatibility & Battery-Free Operation

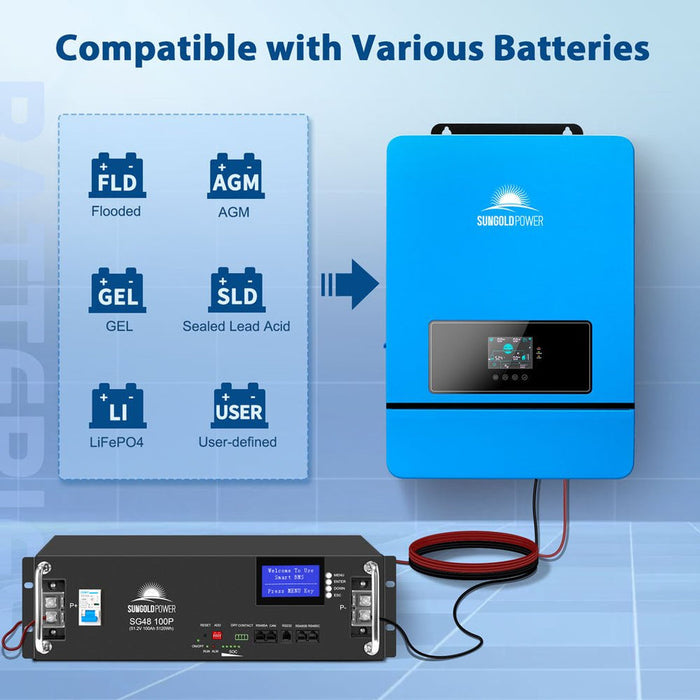

This inverter is compatible with 48V AGM, Sealed, Gel, Flooded, and Lithium batteries and includes a User Mode to support a wide range of battery types. It can also operate without a battery, making it an excellent choice for users looking to run direct solar-to-load systems. Additionally, when a dormant lithium battery is detected, the inverter can reactivate it using grid or solar power. It supports CAN and RS485 communication protocols for seamless integration with SunGold Power batteries.

System Connection and Energy Management
The inverter efficiently manages power distribution, ensuring the battery charges from solar panels while simultaneously supplying power to connected loads. In case of insufficient solar or battery power, it can automatically switch to grid or generator power to maintain uninterrupted energy supply.

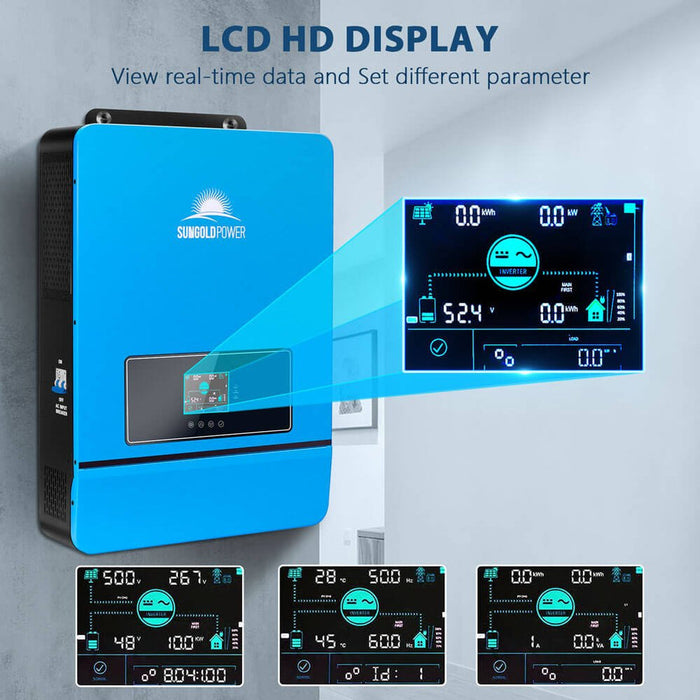

Wi-Fi Monitoring for Remote Access
Equipped with Wi-Fi components, the inverter provides quick and easy access to system data via a mobile app, allowing users to monitor performance, track energy production, and make real-time adjustments from anywhere.

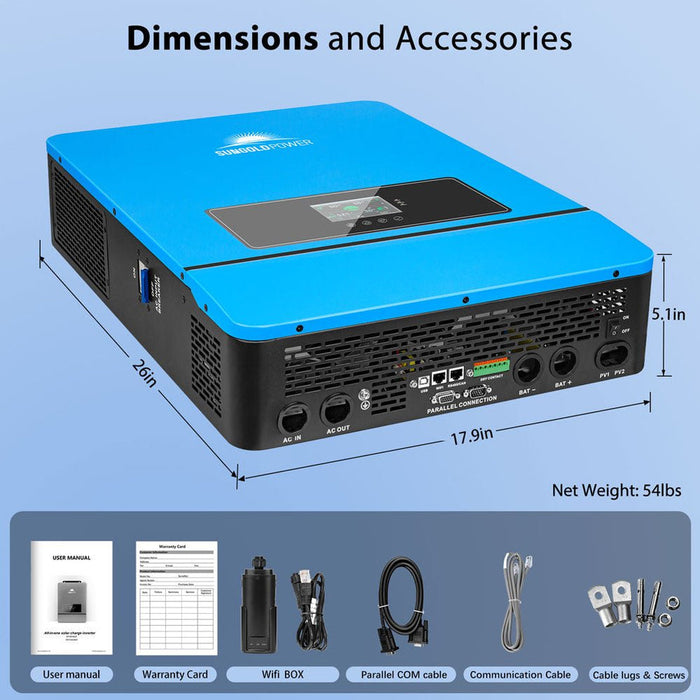

This comprehensive solar inverter package comes equipped with everything needed for efficient solar power conversion and management

10KW Pure Sine Wave Solar Inverter with a built-in 200A battery charger and dual MPPT solar controllers

Wi-Fi Monitoring Module for remote access and real-time performance tracking

Parallel Kit enabling the connection of up to six inverters, expanding power output to 60KW and supporting multiple voltage configurations

Advanced Protection Systems ensuring stable AC output and safeguarding against over-voltage, overloads, short circuits, and other potential issues

User Manual with detailed setup and operating instructions

Performance and Efficiency

The MPPT tracking efficiency reaches 99.9%, ensuring maximum solar power conversion.

The battery inverter’s peak efficiency is 92%, optimizing energy utilization and minimizing losses.

Powering Multiple Devices
The 10,000W inverter can simultaneously power a variety of appliances and tools, including:

Household appliances such as refrigerators, washing machines, and air conditioners

Power tools like drills, saws, and compressors

Heating devices including water heaters and space heaters

Computers, electronics, and LED lighting systems

For devices with high startup surges, such as motors and compressors, ensure that the total surge power does not exceed 10,000W.

The 10KW 48V Split Phase Solar Inverter is a powerful, reliable, and smart energy solution for anyone looking to maximize solar energy efficiency, ensure continuous power supply, and reduce energy costs. Whether for residential backup, off-grid living, or commercial energy applications, this inverter delivers unmatched performance and flexibility.

UL 1741 by ETL for Off Grid Solar System

Specifications

Sungold Power 10KW 48V Split Phase Solar Inverter Specifications
