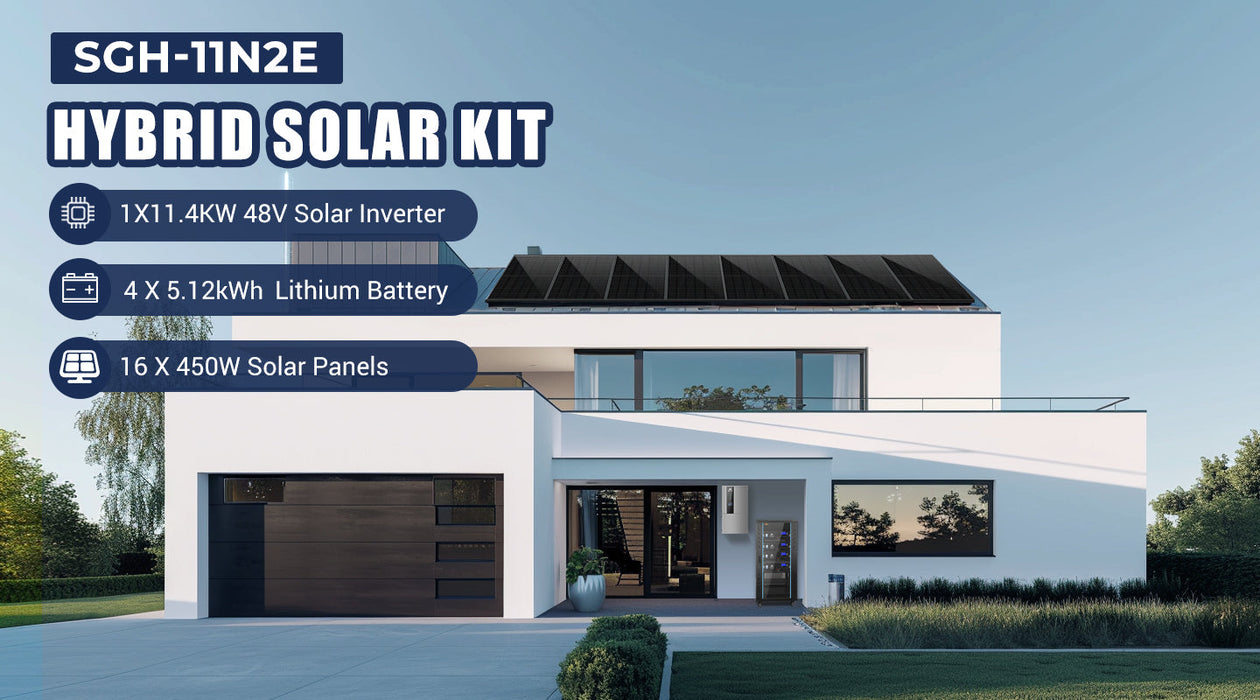

Sungold Power Hybrid Solar Kit 11.4KW 48V Split Phase 20.48KWH Lithium Battery 16 X 440 Watt Solar Panel SGH-11N2E
A Versatile Solar Solution for Off-Grid, Hybrid, or Grid-Tied Applications

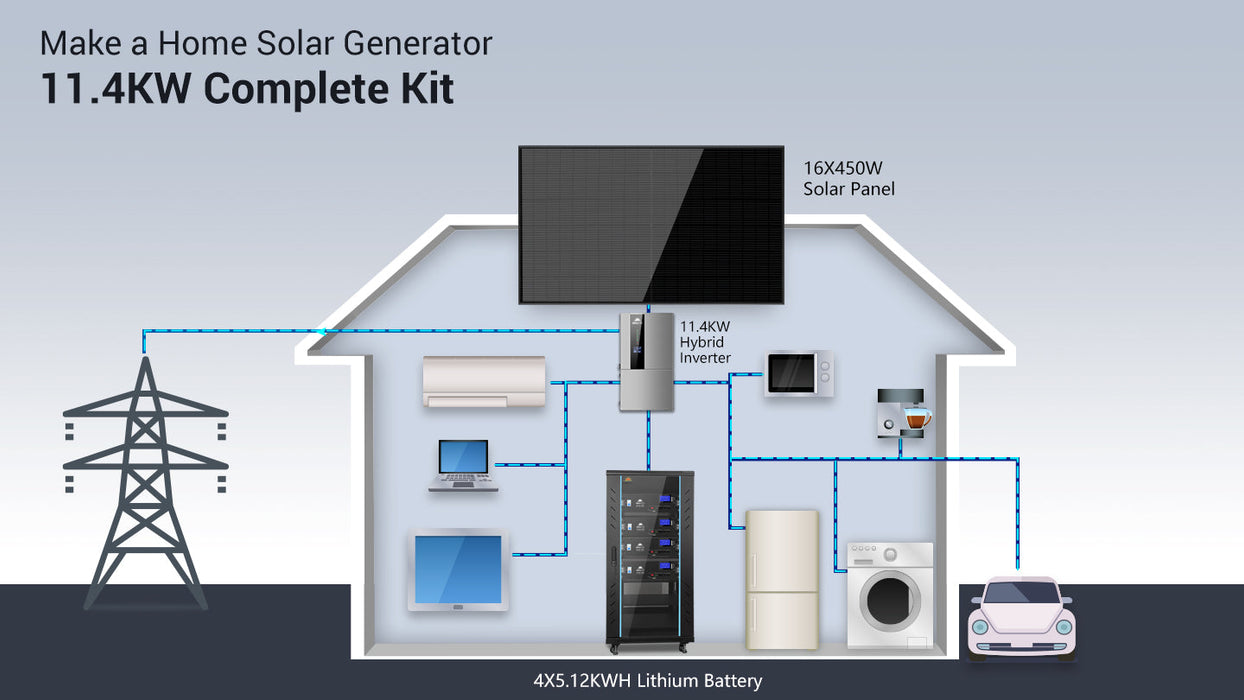

Sungold Power Hybrid Solar Kit is a powerful and flexible energy solution designed to support off-grid, hybrid, or grid-tied setups. This system includes a high-efficiency 11.4KW hybrid inverter, 7,040W of solar panels, and 20.48kWh of lithium battery storage, giving you complete control over your energy use.
With the ability to store solar energy for later use, power appliances directly, or sell excess energy back to the grid, this system helps reduce energy costs while ensuring reliable backup power during outages. Whether you’re looking for complete energy independence or a way to offset electricity bills, this hybrid solar kit is the perfect solution.
Why Choose the SCH-11N2E Hybrid Solar Kit
Flexible Energy Solutions – Supports off-grid, hybrid, or grid-tied setups for customized energy use.
Powerful Hybrid Inverter – 11.4KW continuous output, 15KW solar input, and battery storage capability.
High-Efficiency Solar Panels – 16 x 440W monocrystalline panels for optimal solar energy generation.
Expandable & Scalable – Add more solar panels or batteries as needed to increase capacity.
Reliable Backup Power – 20.48kWh of LiFePO4 battery storage ensures energy availability during outages.
Grid Energy Offset – Sell excess power back to the grid and reduce energy bills.
Complete Installation Kit – Includes all necessary components, cables, and safety breakers for easy setup.
What’s Included in the SCH-11N2E Complete Solar Kit?
Full Solar Kit (with Solar Panels)
(1) 11.4KW 48V Split Phase Hybrid Solar Inverter – Supports off-grid, hybrid, or grid-tied configurations.
(16) 440W Monocrystalline Solar Panels – High-efficiency panels for maximum energy production.
(4) 100Ah 51.2V LiFePO4 Batteries – Long-lasting storage with a total capacity of 20.48kWh.
(1) Enclosed Battery Cabinet – Secure storage for all 4 LiFePO4 batteries.
(2) Sets of 50-Foot Solar Extension Cables – For connecting solar panels to the inverter.
(2/0 AWG Battery Cable) – Ensures efficient power transfer from batteries to the inverter.
(16) Mounting Z-Brackets – Secure installation for solar panels.
(1) 200A DC Breaker – Provides overcurrent protection for the battery system.
(2) 25A PV Breakers – Ensures safety in the solar panel circuit.
Kit Without Solar Panels (Battery & Inverter Only)
(1) 11.4KW 48V Split Phase Hybrid Solar Inverter
(4) 100Ah 51.2V LiFePO4 Batteries
(1) Enclosed Battery Cabinet
(2/0 AWG Battery Cable)
(1) 200A DC Breaker
The Ultimate Energy Solution for Your Home or Business
Whether you’re looking to power your home off-grid, reduce energy costs, or ensure reliable backup power, the SCH-11N2E Hybrid Solar Kit delivers efficiency, flexibility, and long-term savings.
Sungold Power 11.4KW 48V Split Phase Hybrid Solar Inverter
11.4kW 48V Split Phase Hybrid Inverter
This high-quality inverter designed to convert solar energy into AC power, store energy in a battery for future use or feed it into the public grid. With 15kW solar input and 11.4kW continuous output, The system offers the flexibility to go off-grid, hybrid solar system, or sell excess energy back to the grid, providing a range of options to suit your energy needs.
High Solar Input: 3 MPPTs with up to 600V input each, supporting a total solar input of 15kW.
Scalable Power: connect up to 9 inverters in parallel for a 102.6kW system.
Versatile Functionality: Combines grid-tie, off-grid, and hybrid solar capabilities in one system.
Advanced AC Coupling: integration with grid-tie systems and smart load.
User-Friendly Interface: Monitor and adjust settings via an LCD display or mobile app.
Reliable Backup: Ensure continuous power to critical loads with battery backup when the grid fails.
Durable & Safe: IP65 rated, Wall-mounted design, optional 5 or 10-year warranty.
Certificate : UL 1741/CSA C22.2/UL 1699B UL 1741SB, IEEE 1547:2018, HECO SRD 2.0,CEC Listed.
Sungold Power 48V 100AH LIFEPO4 LITHIUM BATTERY
SG48100P Lithium Battery is built for energy storage system. The 48v Server Rack Battery provides well-designed and high-performance standard battery pack. The battery is compact,easy to install, free of maintenance and can be installed in parallel in the energy storage system to increase its capacity. lt is widely used in home applications, small commercial and industrial energy storage system and so on.
Character: The 51.2V 100AH LFP Battery is compact, well-designed, LCD, and cable/accessories ready for installation. ≥7000 cycles deep cycle & 10 years warranty, designed for up to 15-year life UL1973 UL9540A.
Intelligent BMS: Battery Management System of the 48v server rack battery can manage and monitor cells information including voltage, current and temperature, protects it from overcharge, deep discharge, overloading, overheating and short circuit, help to extend lifetime.
Flexible: Modular design, easy to expand, max 32 units in parallel capacity of 163.84kwh, suitable to residential and commercial applications and other energy storage system for increasing the self-consumption ratio.
Compatible: CAN/RS485/RS232 Communication Protocol Lithium Ion Battery can be compatible with most inverters in the market, such as Growatt, Deye, SunGoldPower, Luxpower, Victron energy, Schneider, Phocos, SMK and so on.
Sungold Power 440W Mono Black PERC Solar Panel UL 61730
Off-Grid & On-Grid Solar Panel Solution & Hybrid System
This high efficiency PERC Solar panel works for both on-grid /off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.
High Efficiency PV Solar Panels
High efficiency monocrystalline PERC module, 182mono half-cells with an all-black design.
Water Proof
The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).
Snow and Wind Protection
Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure.
Specifications
Sungold Power 11.4kW 48V Split Phase Hybrid Inverter
Sungold Power 48V 100AH Server Rack LiFePO4 Lithium Battery SG48100P
Sungold Power 440W Mono Black PERC Solar Panel
Sungold Power Hybrid Solar Kit 11.4KW 48V Split Phase 20.48KWH Lithium Battery 16 X 440 Watt Solar Panel SGH-11N2E
Manuals
Sungold Power 11.4kW 48V Split Phase Hybrid Inverter User's Manual
Sungold Power 48V 100AH Server Rack LiFePO4 Lithium Battery Data Sheet 48V
Sungold Power 48V 100AH Server Rack LiFePO4 Lithium Battery User Manual
Sungold Power440W Mono Black Solar Panel User Manual
